License Plate Light Replacement

WARNING: This page is about a different car, the 2013 Honda Fit, 2012 Honda Fit, 2011 Honda Fit, 2010 Honda Fit, and 2009 Honda Fit. However, it is still accessible from the selected car via links, so may be relevant.
  1. Pull the license plate light assembly (A) out.
    NOTE: Be careful not to damage the tailgate.

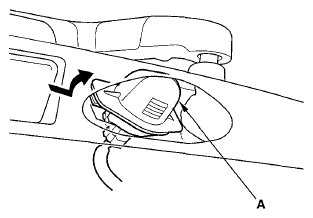

    Fig 1: Identifying License Plate Light Assembly
    G05960027Courtesy of AMERICAN HONDA MOTOR CO., INC.
  2. Disconnect the 2P connector (A) from the light.

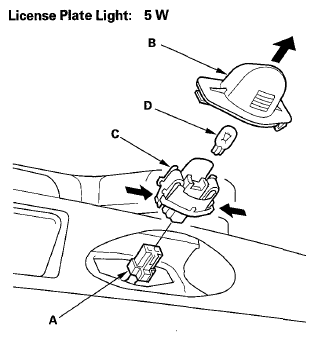

    Fig 2: Identifying 2P Connector
    G05960028Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Separate the license plate light lens (B) and the housing (C), then remove the bulb (D).
  4. Install the license plate light in the reverse order of removal.
