High Mount Brake Light Replacement

WARNING: This page is about a different car, the 2013 Honda Fit, 2012 Honda Fit, 2011 Honda Fit, 2010 Honda Fit, and 2009 Honda Fit. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open the tailgate.
  2. Push in the clips (A), and remove the cover (B) from the high mount brake light (C).

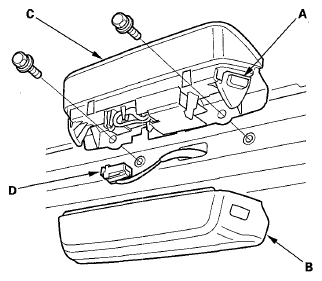

    Fig 1: Identifying High Mount Brake Light With Clips & Cover
    G05960029Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Disconnect the 2P connector (D).
  4. Remove the two mounting bolts and the high mount brake light.
  5. Install the high mount brake light in the reverse order of removal.
