2012 Model

WARNING: This page is about a different car, the 2013 Honda Fit, 2012 Honda Fit, 2011 Honda Fit, 2010 Honda Fit, and 2009 Honda Fit. However, it is still accessible from the selected car via links, so may be relevant.

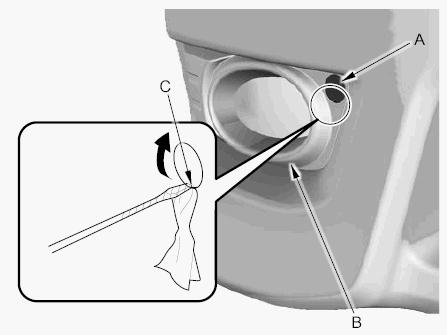

Put a shop towel in the opening between the lower edge of the cap (A) and the fog light (B) to prevent scratches. Insert a flat-tip screwdriver wrapped with protective tape into the slot (C), and remove the cap.

Fig 1: Removing Screw Cap
Courtesy of AMERICAN HONDA MOTOR CO., INC.

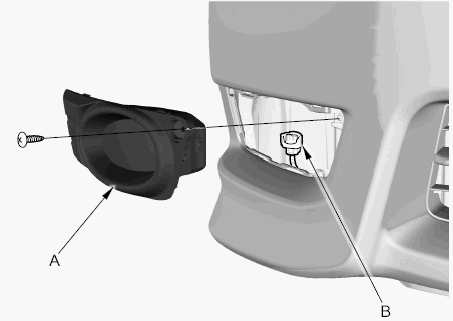

Remove the mounting screw, then pull out the fog light (A) from the front bumper.

Fig 2: Removing Screw And Fog Light From Front Bumper
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Disconnect the 2P connector (B), then remove the fog light.
Install the light in the reverse order of removal.
After replacement, adjust the fog lights.
