Combination Light Switch Test/Replacement

WARNING: This page is about a different car, the 2013 Honda Fit, 2012 Honda Fit, 2011 Honda Fit, 2010 Honda Fit, and 2009 Honda Fit. However, it is still accessible from the selected car via links, so may be relevant.

Remove the steering column covers (see SIDE DEFOGGER VENT TRIM REMOVAL/INSTALLATION ).
Disconnect the 12P connector (A) from the combination light switch (B).

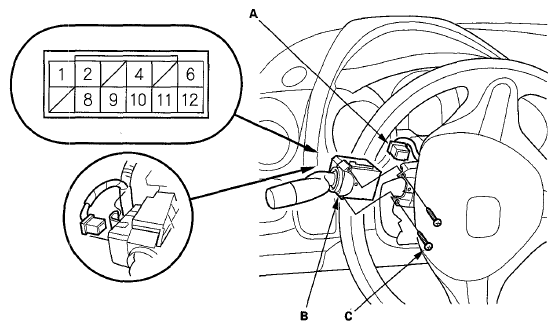

Fig 1: Identifying Combination Light Switch & 12P Connector
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Turn the steering wheel to access the combination light switch screws (C).
Remove the two screws, then slide out the combination light switch.
Inspect the connector terminals to be sure they are all making good contact.
- If the terminals are bent, loose or corroded, repair them as necessary, and recheck the system.
- If the terminals look OK, check for continuity between the terminals in each switch position according to the tables below.

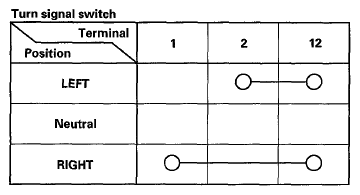

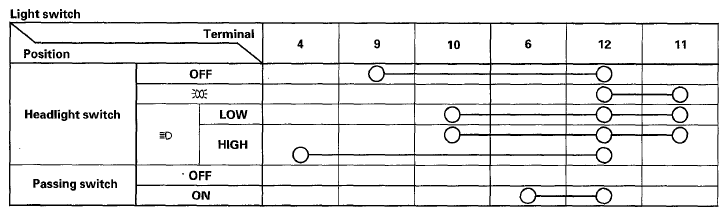

Fig 2: Identifying Connector Terminal Continuity Table (1 Of 3)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 3: Identifying Connector Terminal Continuity Table (2 Of 3)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 4: Identifying Connector Terminal Continuity Table (3 Of 3)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
If all the continuity is not as specified, remove the two screws and replace the switch.
Install the parts in the reverse order of removal.
