Circuit Diagram - Brake Lights

WARNING: This page is about a different car, the 2013 Honda Fit, 2012 Honda Fit, 2011 Honda Fit, 2010 Honda Fit, and 2009 Honda Fit. However, it is still accessible from the selected car via links, so may be relevant.

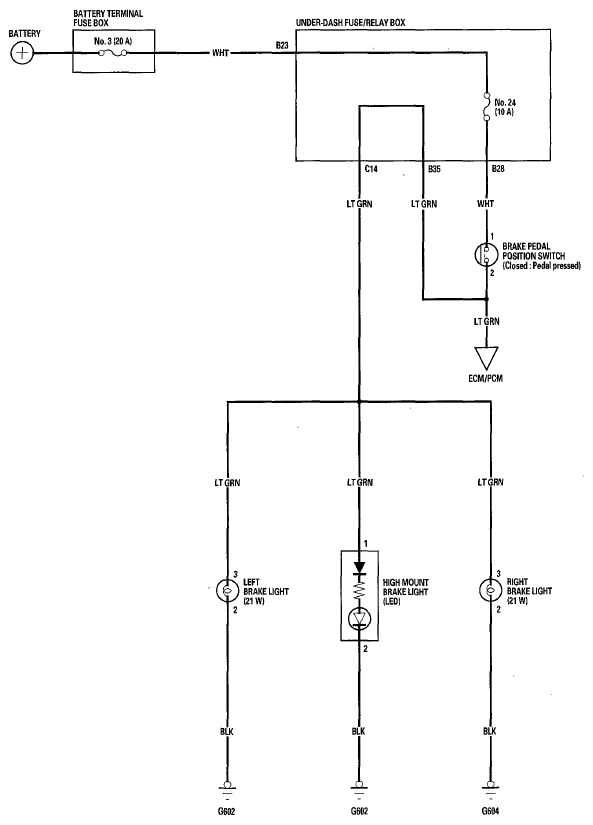

Fig 1: Identifying Brake Lights Circuit Diagram
G05959994Courtesy of AMERICAN HONDA MOTOR CO., INC.
