Bulb Replacement: Taillights

WARNING: This page is about a different car, the 2013 Honda Fit, 2012 Honda Fit, 2011 Honda Fit, 2010 Honda Fit, and 2009 Honda Fit. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open the tailgate and remove the maintenance lid (A).

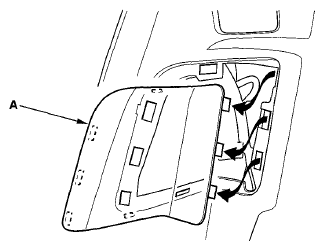

    Fig 1: Identifying Maintenance Lid
    G05960021Courtesy of AMERICAN HONDA MOTOR CO., INC.
  2. Disconnect the connectors from the lights.
  3. Turn the bulb socket (A) 45° counterclockwise to remove the bulb (B).

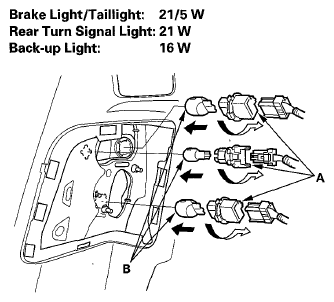

    Fig 2: Identifying Bulb Socket
    G05960022Courtesy of AMERICAN HONDA MOTOR CO., INC.
  4. Install new bulb (s) in the reverse order of removal, and tighten the nuts to 5 N.m (0.5 kgf.m, 4 lbf.ft).
