Bulb Replacement: Headlight

WARNING: This page is about a different car, the 2013 Honda Fit, 2012 Honda Fit, 2011 Honda Fit, 2010 Honda Fit, and 2009 Honda Fit. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the 3P connector (A), then remove the rubber cap (B) from the headlight.

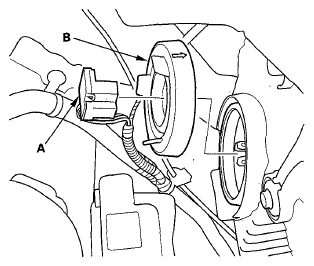

    Fig 1: Identifying Rubber Cap From Headlight
    G05960017Courtesy of AMERICAN HONDA MOTOR CO., INC.
  2. Pull the retaining spring (A) away from the bulb (B), then remove the bulb.
    Fig 2: Identifying Retaining Spring From Bulb
    G05960018Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Install a new bulb in the reverse order of removal.
