Fog Light

WARNING: This page is about a different car, the 2013 Honda Fit, 2012 Honda Fit, 2011 Honda Fit, 2010 Honda Fit, and 2009 Honda Fit. However, it is still accessible from the selected car via links, so may be relevant.

Remove the fog light from the front bumper (see FOG LIGHT REPLACEMENT ).
Turn the bulb socket (A) 45° counterclockwise to remove it from the housing.
2009-11 Models

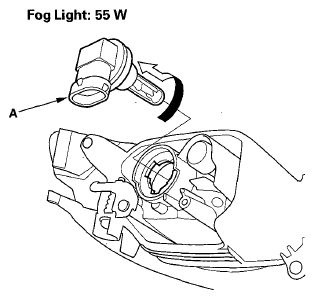

Fig 1: Identifying Fog Light Bulb Socket (2009-11 Models)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

The illustration shows the left side.

2012 Model

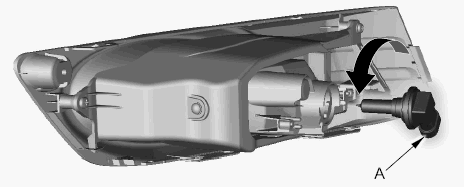

Fig 2: Identifying Fog Light Bulb Socket (2012 Model)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

The illustration shows the right side.
Install a new bulb in the reverse order of removal.
