Brake Pedal Position Switch Test
WARNING: This page is about a different car, the 2013 Honda Fit, 2012 Honda Fit, 2011 Honda Fit, 2010 Honda Fit, and 2009 Honda Fit. However, it is still accessible from the selected car via links, so may be relevant.

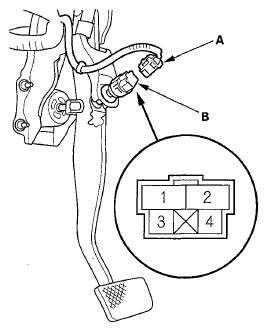

- Disconnect the 4P connector (A) from the brake pedal position switch (B).
- Check for continuity between terminals No. 1 and No. 2.
- There should be continuity when the brake pedal is pressed.
- There should be no continuity when the brake pedal is released.
- Check for continuity between terminals No. 3 and No. 4.
- There should be no continuity when the brake pedal is pressed.
- There should be continuity when the brake pedal is released.
- If the test results are not as specified, adjust the switch or adjust the pedal height (see BRAKE PEDAL AND BRAKE PEDAL POSITION SWITCH ADJUSTMENT ). If the results are still not as specified, replace the switch.
