Special Tools Required
WARNING: This page is about a different car, the 2013 Honda Fit, 2012 Honda Fit, 2011 Honda Fit, 2010 Honda Fit, and 2009 Honda Fit. However, it is still accessible from the selected car via links, so may be relevant.
Relay puller 07AAC-000A1A0
Use this chart to identify the type of relay, then do the test listed for it.
RELAY TEST REFERENCE TABLE
| Relay | Test |
|---|---|
| A/C compressor clutch relay | Normally-open Four-terminal type |
| A/C condenser fan relay | |
| A/F sensor relay* | |
| Blower motor relay* | |
| ETCS control relay* | |
| Fog light relay | |
| Horn relay | |
| Ignition coil relay* | |
| Lighting relay* | |
| PGM-FI main relay 1 (FI MAIN)* | |
| PGM-FI main relay 2 (FUEL PUMP)* | |
| Power window relay (P/W)* | |
| Radiator fan relay | |
| Rear window defogger relay* | |
| Starter cut relay (ST CUT)* | |
| Driver's unlock relay* | Five-terminal type |
NOTE:

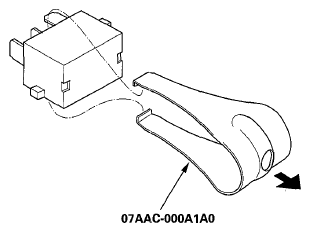

* : Carefully remove the relay from the under-dash fuse/relay box using the relay puller. Do not use pliers. Pliers will damage the relay (see illustration below)..
