Battery Removal and Installation: Removal

WARNING: This page is about a different car, the 2013 Honda Fit, 2012 Honda Fit, 2011 Honda Fit, 2010 Honda Fit, and 2009 Honda Fit. However, it is still accessible from the selected car via links, so may be relevant.

Do the battery terminal disconnection procedure (see BATTERY TERMINAL DISCONNECTION AND RECONNECTION ).
Remove the two nuts (A) securing the battery setting plate (B), then remove the battery setting plate and the battery (C).

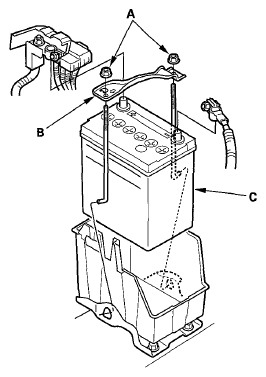

Fig 1: Identifying Battery Setting Plate, Battery & Nuts
Courtesy of AMERICAN HONDA MOTOR CO., INC.
