Battery Removal and Installation: Installation

WARNING: This page is about a different car, the 2013 Honda Fit, 2012 Honda Fit, 2011 Honda Fit, 2010 Honda Fit, and 2009 Honda Fit. However, it is still accessible from the selected car via links, so may be relevant.

Install the battery (A), then install the battery setting plate (B).

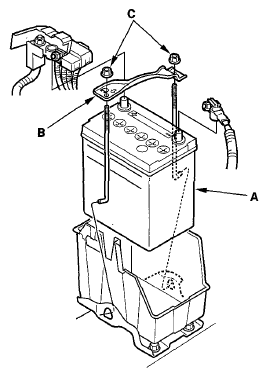

Fig 1: Identifying Battery & Battery Setting Plate With Nuts
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Tighten the two nuts (C) equally until the battery is stable.
NOTE: Do not deform the battery setting plate by over-tightening the nuts.
Do the battery terminal reconnection procedure (see BATTERY TERMINAL DISCONNECTION AND RECONNECTION ).
NOTE: Make sure the battery is installed correctly, and the positive terminal and the negative terminal are not connected in reverse.
