Valve Inspection
WARNING: This page is about a different car, the 2013 Honda Fit, 2012 Honda Fit, 2011 Honda Fit, 2010 Honda Fit, and 2009 Honda Fit. However, it is still accessible from the selected car via links, so may be relevant.
- Remove the valves (see VALVE, SPRING, AND VALVE SEAL REMOVAL ).

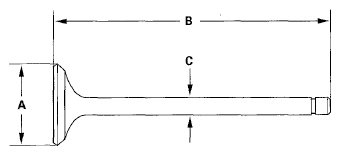

- Measure the valve in these areas.
Intake Valve Dimensions
A Standard (New): 27.85-28.15 mm (1.096-1.108 in.)
B Standard (New): 118.55-119.15 mm (4.667-4.691 in.)
C Standard (New): 5.48-5.49 mm (0.2157-0.2161 in.)
C Service Limit: 5.45 mm (0.215 in.)
Exhaust Valve Dimensions
A Standard (New): 22.85-23.15 mm (0.900-0.911 in.)
B Standard (New): 117.25-117.85 mm (4.616-4.640 in.)
C Standard (New): 5.45-5.46 mm (0.2146-0.2150 in.)
C Service Limit: 5.42 mm (0.213 in.)
