Crankshaft Pulley Removal and Installation: Removal

WARNING: This page is about a different car, the 2013 Honda Fit, 2012 Honda Fit, 2011 Honda Fit, 2010 Honda Fit, and 2009 Honda Fit. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise the vehicle on the lift.
  2. Remove the right front wheel.
  3. Remove the splash shield.
  4. Remove the drive belt (see DRIVE BELT REMOVAL/INSTALLATION ).
  5. Hold the pulley with the handle (A) and the crankshaft pulley holder (B).

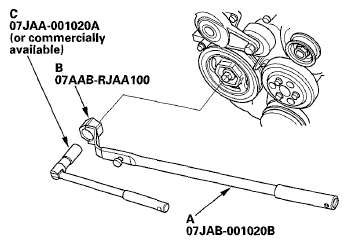

    Fig 1: Identifying Handle, Crankshaft Pulley Holder & Socket
    G05952465Courtesy of AMERICAN HONDA MOTOR CO., INC.
  6. Remove the bolt with a 19 mm socket (C) and a breaker bar, then remove the crankshaft pulley.
