Special Tools Required

WARNING: This page is about a different car, the 2013 Honda Fit, 2012 Honda Fit, 2011 Honda Fit, 2010 Honda Fit, and 2009 Honda Fit. However, it is still accessible from the selected car via links, so may be relevant.

Driver Handle, 15 x 135L 07749-0010000
Bearing Driver Attachment, 52 x 55 mm 07746-0010400

Clean and dry the cam chain case oil seal housing.
Apply a light coat of new engine oil to the lip of the cam chain case oil seal.
Use the driver handle, 15 x 135L and the bearing driver attachment, 52 x 55 mm to drive a new oil seal squarely into the cam chain case to the specified installed height.

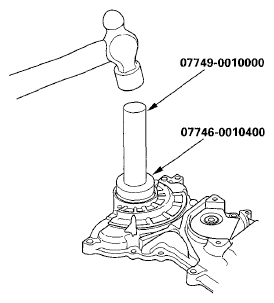

Fig 1: Driving Oil Seal Squarely Into Chain Case Using Driver Handle & Bearing Driver Attachment
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Measure the distance between the chain case surface and the oil seal.
Oil Seal Installed Height:

30.3-31.0 mm (1.19-1.22 in.)

Fig 2: Identifying Distance Between Chain Case Surface & Oil Seal
Courtesy of AMERICAN HONDA MOTOR CO., INC.
