Vehicle Lift

WARNING: This page is about a different car, the 2012 Honda Fit, 2011 Honda Fit, 2010 Honda Fit, and 2009 Honda Fit. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the lift blocks (A) under the vehicle's front support points (B) and rear support points (C) by the reference mark (D).

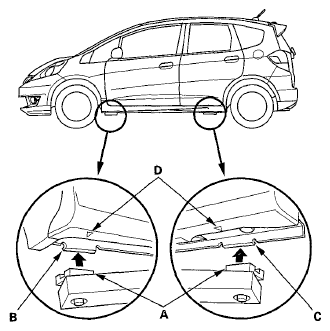

    Fig 1: Identifying Lift And Support Points
    G05952238Courtesy of AMERICAN HONDA MOTOR CO., INC.
  2. Raise the lift a few inches, and rock the vehicle gently to be sure it is firmly supported.
  3. Raise the lift to its full height, and inspect the vehicle support points for solid contact with the lift blocks.
