Floor Jack

WARNING: This page is about a different car, the 2012 Honda Fit, 2011 Honda Fit, 2010 Honda Fit, and 2009 Honda Fit. However, it is still accessible from the selected car via links, so may be relevant.
  1. When lifting the front of the vehicle, set the parking brake. When lifting the rear of the vehicle, put the shift lever in reverse for manual transmission, or in P for automatic transmission.
  2. Block the wheels that are not being lifted.
  3. Position the floor jack under the front jacking bracket (A) or the rear jacking bracket (B). Center the jacking bracket on the jack lift platform (C), and jack up the vehicle high enough to fit the safety stands under it.

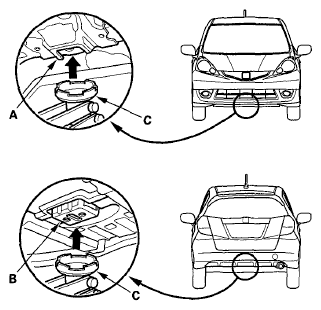

    Fig 1: Identifying Vehicle's Front & Rear Floor Jacking Brackets
    G05952239Courtesy of AMERICAN HONDA MOTOR CO., INC.
  4. Position the safety stands under the support points, and adjust them so the vehicle is level.
  5. Lower the vehicle onto the stands.
