Ignition Coil and Spark Plug Removal/Installation

WARNING: This page is about a different car, the 2013 Honda Fit, 2012 Honda Fit, 2011 Honda Fit, 2010 Honda Fit, and 2009 Honda Fit. However, it is still accessible from the selected car via links, so may be relevant.

Remove the under-cowl panel (see UNDER-COWL PANEL REPLACEMENT ).
Disconnect the ignition coil connectors, then remove the ignition coils.

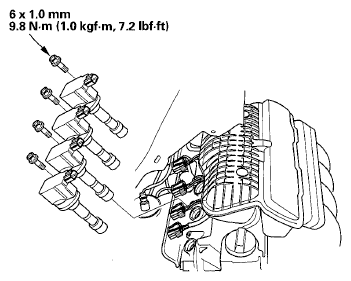

Fig 1: Ignition Coil Connectors With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the spark plugs and inspect them. (see Spark Plug Inspection )
Apply a small amount of anti-seize compound to the plug threads, and screw the plugs into the cylinder head, finger tight. Torque them to 18 Nm (1.8 kgf.m, 13lbf ft).
Install the ignition coils in the reverse order of removal.
