WARNING: This page is about a different car, the 2013 Acura MDX, 2012 Acura MDX, 2011 Acura MDX, and 2010 Acura MDX. However, it is still accessible from the selected car via links, so may be relevant.

Turn the ignition switch to ON (II).
Press and hold the MAP/GUIDE, CANCEL, and MENU buttons at the same time for 3 seconds more, and the self-diagnosis begins.

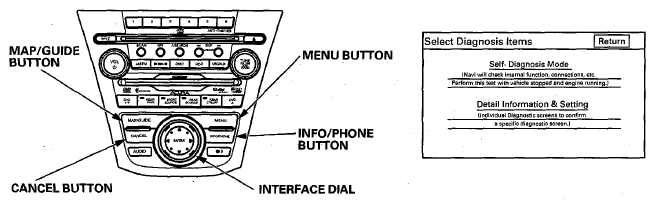

Fig 1: Identifying Map/Guide, Cancel, And Menu Buttons
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Using the interface dial, select the XM (HIP) from the Detail Information & Setting. Press the interface dial. Select XM (HIP) Diag (A) from HIP System Link.

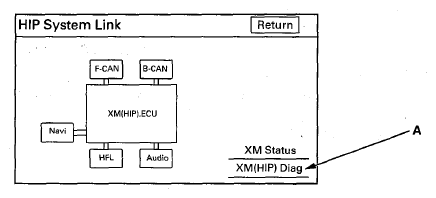

Fig 2: Displaying - HIP System Link
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Select Diagnostic Info.
Select the item you want to delete. After the message and date come up, select Delete.
Select Yes to confirm your choice.
Repeat step 5 and 6 for each message you want to delete.
