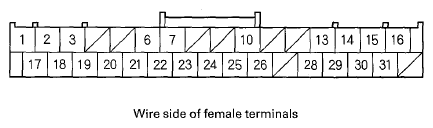

AcuraLink Control Unit (XM Receiver) Connector A (32P)
WARNING: This page is about a different car, the 2013 Acura MDX, 2012 Acura MDX, 2011 Acura MDX, and 2010 Acura MDX. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
| Cavity |
Wire Color |
Terminal Name |
Connect to |
| A1 |
WHT |
+ B |
No. 5 (10 A) fuse in the under-dash fuse/relay box |
| A2 |
LT BLU |
IG1 |
No. 21 (7.5 A) fuse in the under-dash fuse/relay box |
| A3 |
PUR |
ACC |
No. 32 (10 A) fuse in the under-dash fuse/relay box |
| A6 |
RED |
F-CAN A L |
F-CAN communication bus line |
| A7 |
WHT |
F-CAN A H |
F-CAN communication bus line |
| A10 |
LT GRN |
B-CAN |
B-CAN communication bus line |
| A13 |
RED |
AUDIO R + |
Audio-Navigation unit, HandsFreeLink control unit |
| A14 |
WHT |
AUDIO R- |
Audio-Navigation unit, HandsFreeLink control unit |
| A15 |
BLK |
AUDIO L+ |
Audio-Navigation unit, HandsFreeLink control unit |
| A16 |
GRN |
AUDIO L- |
Audio-Navigation unit, HandsFreeLink control unit |
| A17 |
WHT |
NAVI COMM1 |
Audio-Navigation unit |
| A18 |
RED |
NAVI COMM2 |
Audio-Navigation unit |
| A19 |
GRN |
NAVI COMM3 |
Audio-Navigation unit |
| A20 |
BLK |
NAVI COMM4 |
Audio-Navigation unit |
| A21 |
GRY |
NAVI COMM SH |
Shield for terminals No. 17, No. 18, No. 19, and No. 20 |
| A22 |
GRN |
HFL COMM3 |
HandsFreeLink control unit |
| A23 |
BLK |
HFL COMM4 |
HandsFreeLink control unit |
| A24 |
RED |
HFL COMM1 |
HandsFreeLink control unit |
| A25 |
WHT |
HFL COMM2 |
HandsFreeLink control unit |
| A26 |
BRN |
HFL COMM SH |
Shield for terminals No. 22, No. 23, No. 24, and No. 25 |
| A28 |
BLK |
GND |
Body ground to G606 |
| A29 |
BRN |
GA-NET BUS A SH |
Shield for terminals No. 30 and No. 31 |
| A30 |
GRN |
GA-NET BUS A+ |
Audio-Navigation unit |
| A31 |
RED |
GA-NET BUS A- |
Audio-Navigation unit |
