How to Enter the Self-Diagnostic Function

WARNING: This page is about a different car, the 2013 Acura MDX, 2012 Acura MDX, 2011 Acura MDX, and 2010 Acura MDX. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Always check for and repair any B-CAN or F-CAN DTCs before troubleshooting the AcuraLink system.
  1. Turn the ignition switch to ON (II).
  2. Press and hold the MAP/GUIDE, CANCEL, and MENU buttons at the same time for 3 seconds more, and the self-diagnosis begins.

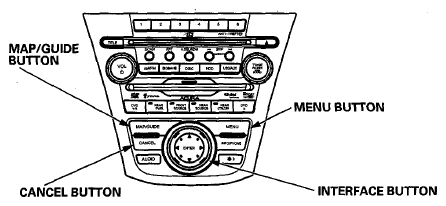

    Fig 1: Identifying Map/Guide, Cancel, And Menu Buttons
    G08055628Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Using the interface dial, select the Detail Information & Setting from the Select Diagnosis Items menu. Press the interface dial.

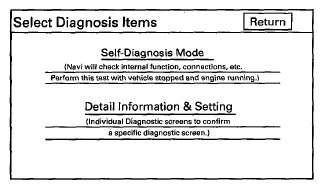

    Fig 2: Display - Select Diagnosis Items Menu
    G08055629Courtesy of AMERICAN HONDA MOTOR CO., INC.
  4. Using the interface dial, select the XM (HIP) from the Detail Information & Setting menu. Press the interface dial.

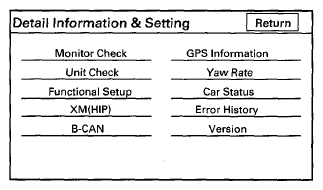

    Fig 3: Display - Detail Information And Setting Menu
    G08055630Courtesy of AMERICAN HONDA MOTOR CO., INC.
  5. The display indicates HIP System Link, and will do an AcuraLink connection check for each device. If a connection is faulty, the location of the fault is indicated with NG (red).

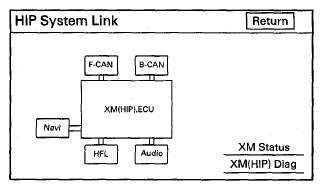

    Fig 4: Display - HIP System Link
    G08055631Courtesy of AMERICAN HONDA MOTOR CO., INC.

    Connection OK: Green color

    Connection NG: Red color

  6. When a red color is indicated, check the continuity between the AcuraLink control unit (XM receiver) and the device indicated in red.
    Device indicated in red Test condition Test: Desired result Possible cause if result is not obtained
    F-CAN Disconnect these items:
    • AcuraLink control unit (XM receiver) connector A (32P)
    • Gauge control module connector A (12P)
    		 Check for continuity between AcuraLink control unit connector A (32P) terminal No. 7 and Gauge control module connector A (12P) terminal No. 12: There should be continuity. An open in the wire
    Check for continuity between AcuraLink control unit connector A (32P) terminal No. 6 and Gauge control module connector A (12P) terminal No. 6: There should be continuity. An open in the wire
    Disconnect these items:
    • AcuraLink control unit (XM receiver) connector A (32P)
    • PCM connector A (49P)
    		 Check for continuity between AcuraLink control unit connector A (32P) terminal No. 7 and PCM connector A (49P) terminal No. 48: There should be continuity. An open in the wire
    Check for continuity between AcuraLink control unit connector A (32P) terminal No. 6 and PCM connector A (49P) terminal No. 49: There should be continuity. An open in the wire
    Disconnect these items:
    • AcuraLink control unit (XM receiver) connector A (32P)
    • VSA modulator-control unit 46P connector
    		 Check for continuity between AcuraLink control unit connector A (32P) terminal No. 7 and VSA modulator-control unit 46P connector terminal No. 39: There should be continuity. An open in the wire
    Check for continuity between AcuraLink control unit connector A (32P) terminal No. 6 and VSA modulator-control unit 46P connector terminal No. 38: There should be continuity. An open in the wire
    Disconnect these items:
    • AcuraLink control unit (XM receiver) connector A (32P)
    • TPMS control unit 20P connector
    		 Check for continuity between AcuraLink control unit connector A (32P) terminal No. 7 and TPMS control unit 20P connector terminal No. 1: There should be continuity. An open in the wire
    Check for continuity between AcuraLink control unit connector A (32P) terminal No. 6 and TPMS control unit 20P connector terminal No. 11: There should be continuity. An open in the wire
    Disconnect these items:
    • AcuraLink control unit (XM receiver) connector A (32P)
    • SH-AWD control unit connector A (20P)
    		 Check for continuity between AcuraLink control unit connector A (32P) terminal No. 7 and SH-AWD control unit connector A (20P) terminal No. 10: There should be continuity. An open in the wire
    Check for continuity between AcuraLink control unit connector A (32P) terminal No. 6 and SH-AWD control unit connector A (20P) terminal No. 20: There should be continuity. An open in the wire
    Disconnect these items:
    • AcuraLink control unit (XM receiver) connector A (32P)
    • SRS unit connector A (39P)
    		 Check for continuity between AcuraLink control unit connector A (32P) terminal No. 7 and SRS unit connector A (39P) terminal No. 17: There should be continuity. An open in the wire
    Check for continuity between AcuraLink control unit connector A (32P) terminal No. 6 and SRS unit connector A (39P) terminal No. 16: There should be continuity. An open in the wire
    Disconnect these items:
    • AcuraLink control unit(XM receiver) connector A (32P)
    • Active damper control unit connector B (14P)(1)
    		 Check for continuity between AcuraLink control unit connector A (32P) terminal No. 7 and Active damper control unit connector B (14P) terminal No. 1: There should be continuity. An open in the wire
    Check for continuity between AcuraLink control unit connector A (32P) terminal No. 6 and Active damper control unit connector B (14P) terminal No. 8: There should be continuity. An open in the wire
    F-CAN Disconnect these items:
    • AcuraLink control unit(XM receiver) connector A (32P)
    • Yaw rate-lateral/longitudinal acceleration sensor 4P connector
    		 Check for continuity between AcuraLink control unit connector A (32P) terminal No. 7 and Yaw rate-lateral/longitudinal acceleration sensor 4P connector terminal No. 3: There should be continuity. An open in the wire
    Check for continuity between AcuraLink control unit connector A (32P) terminal No. 6 and Yaw rate-lateral/longitudinal acceleration sensor 4P connector terminal No. 2: There should be continuity. An open in the wire
    Disconnect these items:
    • AcuraLink control unit (XM receiver) connector A (32P)
    • Steering angle sensor 5P connector
    		 Check for continuity between AcuraLink control unit connector A (32P) terminal No. 7 and Steering angle sensor 5P connector terminal No. 4: There should be continuity. An open in the wire
    Check for continuity between AcuraLink control unit connector A (32P) terminal No. 6 and Steering angle sensor 5P connector terminal No. 2: There should be continuity. An open in the wire
    Disconnect these items:
    • AcuraLink control unit (XM receiver) connector A (32P)
    • ACC unit 20P connector(3)
    		 Check for continuity between AcuraLink control unit connector A (32P) terminal No. 7 and ACC unit 20P connector terminal No. 10: There should be continuity. An open in the wire
    Check for continuity between AcuraLink control unit connector A (32P) terminal No. 6 and ACC unit 20P connector terminal No. 20: There should be continuity. An open in the wire
    Disconnect these items:
    • AcuraLink control unit (XM receiver) connector A (32P)
    • E-pretensioner unit connector B (14P)(3)
    		 Check for continuity between AcuraLink control unit connector A (32P) terminal No. 7 and E-pretensioner unit connector B (14P) terminal No. 3: There should be continuity. An open in the wire
    Check for continuity between AcuraLink control unit connector A (32P) terminal No. 6 and E-pretensioner unit connector B (14P) terminal No. 5: There should be continuity. An open in the wire
    Disconnect these items:
    • AcuraLink control unit (XM receiver) connector A (32P)
    • Gauge control module connector A (12P)
    • PCM connector A (49P)
    • VSA modulator-control unit 46P connector
    • TPMS control unit 20P connector
    • SH-AWD control unit connector A (20P)
    • SRS unit connector A (39P)
    • Active damper control unit connector B (UP)(2)
    • Yaw rate-lateral/longitudinal acceleration sensor 4P connector
    • Steering angle sensor 5P connector
    • ACC unit 20P connector(3)
    • E-pretensioner unit connector B (14P)(3)
    		 Check for continuity between body ground and AcuraLink control unit (XM receiver) connector A (32P) terminals No. 6 and No. 7 individually: There should be no continuity. A short in the wire
    Check for continuity between AcuraLink control unit (XM receiver) connector A (32P) terminals No. 1 and No. 7: There should be no continuity. A short in the wire
    Check for continuity between AcuraLink control unit (XM receiver) connector A (32P) terminals No. 1 and No. 6: There should be no continuity. A short in the wire
    F-CAN Disconnect these items:
    • Gauge control module connector A (12P)
    • PCM connector A (49P)
    • VSA modulator-control unit 46P connector
    • TPMS control unit 20P connector
    • SH-AWD control unit connector A (20P)
    • SRS unit connector A (39P)
    • Active damper control unit connector B (14P)(2)
    • Yaw rate-lateral/longitudinal acceleration sensor 4P connector
    • Steering angle sensor 5P connector
    • ACC unit 20P connector(3)
    • E-pretensioner unit connector B (14P)(3)
    		 Check for continuity between body ground and AcuraLink control unit (XM receiver) connector A (32P) terminals No. 6 and No. 7 individually: There should be no continuity. A short in the AcuraLink control unit (XM receiver)
    Disconnect these items:
    • AcuraLink control unit (XM receiver) connector A (32P)
    • PCM connector A (49P)
    • VSA modulator-control unit 46P connector
    • TPMS control unit 20P connector
    • SH-AWD control unit connector A (20P)
    • SRS unit connector A (39P)
    • Active damper control unit connector B (14P)(2)
    • Yaw rate-lateral/longitudinal acceleration sensor 4P connector
    • Steering angle sensor 5P connector
    • ACC unit 20P connector(3)
    • E-pretensioner unit connector B (14P)(3)
    		 Check for continuity between body ground and AcuraLink control unit (XM receiver) connector A (32P) terminals No. 6 and No. 7 individually: There should be no continuity. A short in the Gauge control module
    Disconnect these items:
    • AcuraLink control unit (XM receiver) connector A (32P)
    • Gauge control module connector A (12P)
    • VSA modulator-control unit 46P connector
    • TPMS control unit 20P connector
    • SH-AWD control unit connector A (20P)
    • SRS unit connector A (39P)
    • Active damper control unit connector B (14P)(2)
    • Yaw rate-lateral/longitudinal acceleration sensor 4P connector
    • Steering angle sensor 5P connector
    • ACC unit 20P connector(3)
    • E-pretensioner unit connector B (14P)(3)
    		 Check for continuity between body ground and AcuraLink control unit (XM receiver) connector A (32P) terminals No. 6 and No. 7 individually: There should be no continuity. A short in the PCM
    F-CAN Disconnect these items:
    • AcuraLink control unit (XM receiver) connector A (32P)
    • Gauge control module connector A (12P)
    • PCM connector A (49P)
    • TPMS control unit 20P connector
    • SH-AWD control unit connector A (20P)
    • SRS unit connector A (39P)
    • Active damper control unit connector B (14P)(2)
    • Yaw rate-lateral/longitudinal acceleration sensor 4P connector
    • Steering angle sensor 5P connector
    • ACC unit 20P connector(3)
    • E-pretensioner unit connector B (14P)(3)
    		 Check for continuity between body ground and AcuraLink control unit (XM receiver) connector A (32P) terminals No. 6 and No. 7 individually: There should be no continuity. A short in the VSA modulator-control unit
    Disconnect these items:
    • AcuraLink control unit (XM receiver) connector A (32P)
    • Gauge control module connector A (12P)
    • PCM connector A (49P)
    • VSA modulator-control unit 46P connector
    • SH-AWD control unit connector A (20P)
    • SRS unit connector A (39P)
    • Active damper control unit connector B (14P)(2)
    • Yaw rate-lateral/longitudinal acceleration sensor 4P connector
    • Steering angle sensor 5P connector
    • ACC unit 20P connector(3)
    • E-pretensioner unit connector B (14P)(3)
    		 Check for continuity between body ground and AcuraLink control unit (XM receiver) connector A (32P) terminals No. 6 and No. 7 individually: There should be no continuity. A short in the TPMS control unit
    Disconnect these items:
    • AcuraLink control unit(XM receiver) connector A (32P)
    • Gauge control module connector A (12P)
    • PCM connector A (49P)
    • VSA modulator-control unit 46P connector
    • TPMS control unit 20P connector
    • SRS unit connector A (39P)
    • Active damper control unit connector B (14P)(2)
    • Yaw rate-lateral/longitudinal acceleration sensor 4P connector
    • Steering angle sensor 5P connector
    • ACC unit 20P connector(3)
    • E-pretensioner unit connector B (14P)(3)
    		 Check for continuity between body ground and AcuraLink control unit(XM receiver) connector A (32P) terminals No. 6 and No. 7 individually: There should be no continuity. A short in the SH-AWD control unit
    F-CAN Disconnect these items:
    • AcuraLink control unit (XM receiver) connector A (32P)
    • Gauge control module connector A (12P)
    • PCM connector A (49P)
    • VSA modulator-control unit 46P connector
    • TPMS control unit 20P connector
    • SH-AWD control unit connector A (20P)
    • Active damper control unit connector B (14P)(2)
    • Yaw rate-lateral/longitudinal acceleration sensor 4P connector
    • Steering angle sensor 5P connector
    • ACC unit 20P connector(3)
    • E-pretensioner unit connector B (14P)(3)
    		 Check for continuity between body ground and AcuraLink control unit(XM receiver) connector A (32P) terminals No. 6 and No. 7 individually: There should be no continuity. A short in the SRS unit
    Disconnect these items:
    • AcuraLink control unit (XM receiver) connector A (32P)
    • Gauge control module connector A (12P)
    • PCM connector A (49P)
    • VSA modulator-control unit 46P connector
    • TPMS control unit 20P connector
    • SH-AWD control unit connector A (20P)
    • SRS unit connector A (39P)
    • Yaw rate-lateral/longitudinal acceleration sensor 4P connector
    • Steering angle sensor 5P connector
    • ACC unit 20P connector(3)
    • E-pretensioner unit connector B (14P)(3)
    		 Check for continuity between body ground and AcuraLink control unit (XM receiver) connector A (32P) terminals No. 6 and No. 7 individually: There should be no continuity. A short in the Active damper control unit(2)
    Disconnect these items:
    • AcuraLink control unit (XM receiver) connector A (32P)
    • Gauge control module connector A (12P)
    • PCM connector A (49P)
    • VSA modulator-control unit 46P connector
    • TPMS control unit 20P connector
    • SH-AWD control unit connector A (20P)
    • SRS unit connector A (39P)
    • Active damper control unit connector B (14P)(2)
    • Steering angle sensor 5P connector
    • ACC unit 20P connector(3)
    • E-pretensioner unit connector B (14P)(3)
    		 Check for continuity between body ground and AcuraLink control unit (XM receiver) connector A (32P) terminals No. 6 and No. 7 individually: There should be no continuity. A short in the Yaw rate-lateral/longitudinal acceleration sensor
    F-CAN Disconnect these items:
    • AcuraLink control unit(XM receiver) connector A (32P)
    • Gauge control module connector A (12P)
    • PCM connector A (49P)
    • VSA modulator-control unit 46P connector
    • TPMS control unit 20P connector
    • SH-AWD control unit connector A (20P)
    • SRS unit connector A (39P)
    • Active damper control unit connector B (14P)(2)
    • Yaw rate-lateral/longitudinal acceleration sensor 4P connector
    • ACC unit 20P connector(3)
    • E-pretensioner unit connector B (14P)(3)
    		 Check for continuity between body ground and AcuraLink control unit (XM receiver) connector A (32P) terminals No. 6 and No. 7 individually: There should be no continuity. A short in the Steering angle sensor
    Disconnect these items:
    • AcuraLink control unit (XM receiver) connector A (32P)
    • Gauge control module connector A (12P)
    • PCM connector A (49P)
    • VSA modulator-control unit 46P connector
    • TPMS control unit 20P connector
    • SH-AWD control unit connector A (20P)
    • SRS unit connector A (39P)
    • Active damper control unit connector B (14P)(2)
    • Yaw rate-lateral/longitudinal acceleration sensor 4P connector
    • Steering angle sensor 5P connector
    • E-pretensioner unit connector B (14P)(3)
    		 Check for continuity between body ground and AcuraLink control unit(XM receiver) connector A (32P) terminals No. 6 and No. 7 individually: There should be no continuity. A short in the ACC unit(3)
    Disconnect these items:
    • AcuraLink control unit (XM receiver) connector A (32P)
    • Gauge control module connector A (12P)
    • PCM connector A (49P)
    • VSA modulator-control unit 46P connector
    • TPMS control unit 20P connector
    • SH-AWD control unit connector A (20P)
    • SRS unit connector A (39P)
    • Active damper control unit connector B (14P)(2)
    • Yaw rate-lateral/longitudinal acceleration sensor 4P connector
    • Steering angle sensor 5P connector
    • ACC unit 20P connector(3)
    		 Check for continuity between body ground and AcuraLink control unit (XM receiver) connector A (32P) terminals No. 6 and No. 7 individually: There should be no continuity. A short in the E-pretensioner unit (3)
    B-CAN Disconnect these items:
    • AcuraLink control unit (XM receiver) connector A (32P)
    • Under-dash fuse/relay box connector G (6P)
    		 Check for continuity between AcuraLink control unit (XM receiver) connector A (32P) terminals No. 10 and Under-dash fuse/relay box connector G (6P) terminal No. 1: There should be continuity. An open in the wire
    Disconnect these items:
    • AcuraLink control unit (XM receiver) connector A (32P)
    • Driver's MPCS unit connector A (40P)
    		 Check for continuity between AcuraLink control unit (XM receiver) connector A (32P) terminals No. 10 and Driver's MPCS unit connector A (40P) terminal No. 28: There should be continuity. An open in the wire
    Disconnect these items:
    • AcuraLink control unit (XM receiver) connector A (32P)
    • Rear fuse/relay box connector B (34P)
    		 Check for continuity between AcuraLink control unit (XM receiver) connector A (32P) terminals No. 10 and Rear fuse/relay box connector B (34P) terminal No. 2: There should be continuity. An open in the wire
    Disconnect these items:
    • AcuraLink control unit (XM receiver) connector A (32P)
    • Combination switch control unit 8P connector
    		 Check for continuity between AcuraLink control unit (XM receiver) connector A (32P) terminals No. 10 and Combination switch control unit 8P connector terminal No. 4: There should be continuity. An open in the wire
    Disconnect these items:
    • AcuraLink control unit (XM receiver) connector A (32P)
    • Under-hood fuse/relay box (Relay control module) connector E (14P)
    		 Check for continuity between AcuraLink control unit (XM receiver) connector A (32P) terminals No. 10 and Under-hood fuse/relay box (Relay control module) connector E (14P) terminal No. 1: There should be continuity. An open in the wire
    Disconnect these items:
    • AcuraLink control unit (XM receiver) connector A (32P)
    • Power seat control unit connector A (40P)
    		 Check for continuity between AcuraLink control unit (XM receiver) connector A (32P) terminals No. 10 and Power seat control unit connector A (40P) terminal No. 40: There should be continuity. An open in the wire
    Disconnect these items:
    • AcuraLink control unit (XM receiver) connector A (32P)
    • Immobilizer-keyless control unit 7P connector
    		 Check for continuity between AcuraLink control unit (XM receiver) connector A (32P) terminals No. 10 and Immobilizer-keyless control unit 7P connector terminal No. 4: There should be continuity. An open in the wire
    Disconnect these items:
    • AcuraLink control unit (XM receiver) connector A (32P)
    • Power tailgate control unit connector C (14P)
    		 Check for continuity between AcuraLink control unit (XM receiver) connector A (32P) terminals No. 10 and Power tailgate control unit connector C (14P) terminal No. 7: There should be continuity. An open in the wire
    Disconnect these items:
    • AcuraLink control unit (XM receiver) connector A (32P)
    • Gauge control module connector A (12P)
    		 Check for continuity between AcuraLink control unit (XM receiver) connector A (32P) terminals No. 10 and Gauge control module connector A (12P) terminal No. 5: There should be continuity. An open in the wire
    Disconnect these items:
    • AcuraLink control unit (XM receiver) connector A (32P)
    • HandsFreeLink control unit 28P connector
    		 Check for continuity between AcuraLink control unit (XM receiver) connector A (32P) terminals No. 10 and HandsFreeLink control unit 28P connector terminal No. 18: There should be continuity. An open in the wire
    B-CAN Disconnect these items:
    • AcuraLink control unit (XM receiver) connector A (32P)
    • Climate control unit connector A (40P)
    		 Check for continuity between AcuraLink control unit (XM receiver) connector A (32P) terminals No. 10 and Climate control unit connector A (40P) terminal No. 4: There should be continuity. An open in the wire
    Disconnect these items:
    • AcuraLink control unit (XM receiver) connector A (32P)
    • BSI control unit 16P connector*
    		 Check for continuity between AcuraLink control unit (XM receiver) connector A (32P) terminals No. 10 and BSI control unit 16P connector* terminal No. 5: There should be continuity. An open in the wire
    Disconnect these items:
    • AcuraLink control unit (XM receiver) connector A (32P)
    • Under-dash fuse/relay box connector G (6P)
    • Driver's MPCS unit connector A (40P)
    • Rear fuse/relay box connector B (34P)
    • Combination switch control unit 8P connector
    • Under-hood fuse/relay box (Relay control module) connector E (14P)
    • Power seat control unit connector A (40P)
    • Immobilizer-keyless control unit 7P connector
    • Power tailgate control unit connector C (14P)
    • Gauge control module connector A (12P)
    • HandsFreeLink control unit 28P connector
    • Climate control unit connector A (40P)
    • BSI control unit 16P connector*
    		 Check for continuity between body ground and AcuraLink control unit (XM receiver) connector A (32P) terminals No. 10: There should be no continuity. A short in the wire
    Check for continuity between AcuraLink control unit (XM receiver) connector A (32P) terminals No. 1 and No. 10: There should be no continuity. A short in the wire
    Disconnect these items:
    • Under-dash fuse/relay box connector G (6P)
    • Driver's MPCS unit connector A (40P)
    • Rear fuse/relay box connector B (34P)
    • Combination switch control unit 8P connector
    • Under-hood fuse/relay box (Relay control module) connector E (14P)
    • Power seat control unit connector A (40P)
    • Immobilizer-keyless control unit 7P connector
    • Power tailgate control unit connector C (14P)
    • Gauge control module connector A (12P)
    • HandsFreeLink control unit 28P connector
    • Climate control unit connector A (40P)
    • BSI control unit 16P connector*
    		 Check for continuity between AcuraLink control unit (XM receiver) connector A (32P) terminals No. 10 and body ground: There should be no continuity. A short in the AcuraLink control unit (XM receiver)
    B-CAN Disconnect these items:
    • AcuraLink control unit(XM receiver) connector A (32P)
    • Driver's MPCS unit connector A (40P)
    • Rear fuse/relay box connector B (34P)
    • Combination switch control unit 8P connector
    • Under-hood fuse/relay box (Relay control module) connector E (14P)
    • Power seat control unit connector A (40P)
    • Immobilizer-keyless control unit 7P connector
    • Power tailgate control unit connector C (14P)
    • Gauge control module connector A (12P)
    • HandsFreeLink control unit 28P connector
    • Climate control unit connector A (40P)
    • BSI control unit 16P connector*
    		 Check for continuity between AcuraLink control unit (XM receiver) connector A (32P) terminals No. 10 and body ground: There should be no continuity. A short in the Under-dash fuse/relay box
    Disconnect these items:
    • AcuraLink control unit (XM receiver) connector A (32P)
    • Under-dash fuse/relay box connector G (6P)
    • Rear fuse/relay box connector B (34P)
    • Combination switch control unit 8P connector
    • Under-hood fuse/relay box (Relay control module) connector E (14P)
    • Power seat control unit connector A (40P)
    • Immobilizer-keyless control unit 7P connector
    • Power tailgate control unit connector C (14P)
    • Gauge control module connector A (12P)
    • HandsFreeLink control unit 28P connector
    • Climate control unit connector A (40P)
    • BSI control unit 16P connector*
    		 Check for continuity between AcuraLink control unit (XM receiver) connector A (32P) terminals No. 10 and body ground: There should be no continuity. A short in the Driver's MPCS unit
    Disconnect these items:
    • AcuraLink control unit (XM receiver) connector A (32P)
    • Under-dash fuse/relay box connector G (6P)
    • Driver's MPCS unit connector A (40P)
    • Combination switch control unit 8P connector
    • Under-hood fuse/relay box (Relay control module) connector E (14P)
    • Power seat control unit connector A (40P)
    • Immobilizer-keyless control unit 7P connector
    • Power tailgate control unit connector C (14P)
    • Gauge control module connector A (12P)
    • HandsFreeLink control unit 28P connector
    • Climate control unit connector A (40P)
    • BSI control unit 16P connector*
    		 Check for continuity between AcuraLink control unit (XM receiver) connector A (32P) terminals No. 10 and body ground: There should be no continuity. A short in the Rear fuse/relay box
    B-CAN Disconnect these items:
    • AcuraLink control unit (XM receiver) connector A (32P)
    • Under-dash fuse/relay box connector G (6P)
    • Driver's MPCS unit connector A (40P)
    • Rear fuse/relay box connector B (34P)
    • Under-hood fuse/relay box (Relay control module) connector E (14P)
    • Power seat control unit connector A (40P)
    • Immobilizer-keyless control unit 7P connector
    • Power tailgate control unit connector C (UP)
    • Gauge control module connector A (12P)
    • HandsFreeLink control unit 28P connector
    • Climate control unit connector A (40P)
    • BSI control unit 16P connector*
    		 Check for continuity between AcuraLink control unit (XM receiver) connector A (32P) terminals No. 10 and body ground: There should be no continuity. A short in the Combination switch control unit
    Disconnect these items:
    • AcuraLink control unit(XM receiver) connector A (32P)
    • Under-dash fuse/relay box connector G (6P)
    • Driver's MPCS unit connector A (40P)
    • Rear fuse/relay box connector B (34P)
    • Combination switch control unit 8P connector
    • Power seat control unit connector A (40P)
    • Immobilizer-keyless control unit 7P connector
    • Power tailgate control unit connector C (14P)
    • Gauge control module connector A (12P)
    • HandsFreeLink control unit 28P connector
    • Climate control unit connector A (40P)
    • BSI control unit 16P connector*
    		 Check for continuity between AcuraLink control unit (XM receiver) connector A (32P) terminals No. 10 and body ground: There should be no continuity. A short in the Under-hood fuse/relay box (Relay control module)
    Disconnect these items:
    • AcuraLink control unit (XM receiver) connector A (32P)
    • Under-dash fuse/relay box connector G (6P)
    • Driver's MPCS unit connector A (40P)
    • Rear fuse/relay box connector B (34P)
    • Combination switch control unit 8P connector
    • Under-hood fuse/relay box (Relay control module) connector E (14P)
    • Immobilizer-keyless control unit 7P connector
    • Power tailgate control unit connector C (14P)
    • Gauge control module connector A (12P)
    • HandsFreeLink control unit 28P connector
    • Climate control unit connector A (40P)
    • BSI control unit 16P connector*
    		 Check for continuity between AcuraLink control unit (XM receiver) connector A (32P) terminals No. 10 and body ground: There should be no continuity. A short in the Power seat control unit
    B-CAN Disconnect these items:
    • AcuraLink control unit (XM receiver) connector A (32P)
    • Under-dash fuse/relay box connector G (6P)
    • Driver's MPCS unit connector A (40P)
    • Rear fuse/relay box connector B (34P)
    • Combination switch control unit 8P connector
    • Under-hood fuse/relay box (Relay control module) connector E (14P)
    • Power seat control unit connector A (40P)
    • Power tailgate control unit connector C (14P)
    • Gauge control module connector A (12P)
    • HandsFreeLink control unit 28P connector
    • Climate control unit connector A (40P)
    • BSI control unit 16P connector*
    		 Check for continuity between AcuraLink control unit (XM receiver) connector A (32P) terminals No. 10 and body ground: There should be no continuity. A short in the Immobilizer-key-less control unit
    Disconnect these items:
    • AcuraLink control unit (XM receiver) connector A (32P)
    • Under-dash fuse/relay box connector G (6P)
    • Driver's MPCS unit connector A (40P)
    • Rear fuse/relay box connector B (34P)
    • Combination switch control unit 8P connector
    • Under-hood fuse/relay box (Relay control module) connector E (14P)
    • Power seat control unit connector A (40P)
    • Immobilizer-keyless control unit 7P connector
    • Gauge control module connector A (12P)
    • HandsFreeLink control unit 28P connector
    • Climate control unit connector A (40P)
    • BSI control unit 16P connector*
    		 Check for continuity between AcuraLink control unit (XM receiver) connector A (32P) terminals No. 10 and body ground: There should be no continuity. A short in the Power tailgate control unit
    Disconnect these items:
    • AcuraLink control unit(XM receiver) connector A (32P)
    • Under-dash fuse/relay box connector G (6P)
    • Driver's MPCS unit connector A (40P)
    • Rear fuse/relay box connector B (34P)
    • Combination switch control unit 8P connector
    • Under-hood fuse/relay box (Relay control module) connector E (14P)
    • Power seat control unit connector A (40P)
    • Immobilizer-keyless control unit 7P connector
    • Power tailgate control unit connector C (14P)
    • HandsFreeLink control unit 28P connector
    • Climate control unit connector A (40P)
    • BSI control unit 16P connector*
    		 Check for continuity between AcuraLink control unit (XM receiver) connector A (32P) terminals No. 10 and body ground: There should be no continuity. A short in the Gauge control module
    B-CAN Disconnect these items:
    • AcuraLink control unit (XM receiver) connector A (32P)
    • Under-dash fuse/relay box connector G (6P>
    • Driver's MPCS unit connector A (40P)
    • Rear fuse/relay box connector B (34P)
    • Combination switch control unit 8P connector
    • Under-hood fuse/relay box (Relay control module) connector E (14P)
    • Power seat control unit connector A (40P)
    • Immobilizer-keyless control unit 7P connector
    • Power tailgate control unit connector C (14P)
    • Gauge control module connector A (12P)
    • Climate control unit connector A (40P)
    • BSI control unit 16P connector*
    		 Check for continuity between AcuraLink control unit (XM receiver) connector A (32P) terminals No. 10 and body ground: There should be no continuity. A short in the HandsFreeLink control unit
    Disconnect these items:
    • AcuraLink control unit (XM receiver) connector A (32P)
    • Under-dash fuse/relay box connector G (6P)
    • Driver's MPCS unit connector A (40P)
    • Rear fuse/relay box connector B (34P)
    • Combination switch control unit 8P connector
    • Under-hood fuse/relay box (Relay control module) connector E (14P)
    • Power seat control unit connector A (40P)
    • Immobilizer-keyless control unit 7P connector
    • Power tailgate control unit connector C (14P)
    • Gauge control module connector A (12P)
    • HandsFreeLink control unit 28P connector
    • BSI control unit 16P connector*
    		 Check for continuity between AcuraLink control unit (XM receiver) connector A (32P) terminals No. 10 and body ground: There should be no continuity. A short in the Climate control unit
    Disconnect these items:
    • AcuraLink control unit (XM receiver) connector A (32P)
    • Under-dash fuse/relay box connector G (6P)
    • Driver's MPCS unit connector A (40P)
    • Rear fuse/relay box connector B (34P)
    • Combination switch control unit 8P connector
    • Under-hood fuse/relay box (Relay control module) connector E (14P)
    • Power seat control unit connector A (40P)
    • Immobilizer-keyless control unit 7P connector
    • Power tailgate control unit connector C (14P)
    • Gauge control module connector A (12P)
    • HandsFreeLink control unit 28P connector
    • Climate control unit connector A (40P)
    		 Check for continuity between AcuraLink control unit (XM receiver) connector A (32P) terminals No. 10 and body ground: There should be no continuity. A short in the BSI control unit*2
    Navi Disconnect these items:
    • AcuraLink control unit (XM receiver) connector A (32P)
    • Audio-Navigation unit connector C (28P)
    		 Check for continuity between AcuraLink control unit (XM receiver) connector A (32P) terminals No. 17 and audio-navigation unit connector C (28P) terminal No. 10: There should be continuity. An open in the wire
    Check for continuity between AcuraLink control unit (XM receiver) connector A (32P) terminals No. 18 and audio-navigation unit connector C (28P) terminal No. 9: There should be continuity. An open in the wire
    Check for continuity between AcuraLink control unit (XM receiver) connector A (32P) terminals No. 19 and audio-navigation unit connector C (28P) terminal No. 23: There should be continuity. An open in the wire
    Check for continuity between AcuraLink control unit (XM receiver) connector A (32P) terminals No. 20 and audio-navigation unit connector C (28P) terminal No. 22: There should be continuity. An open in the wire
    Check for continuity between AcuraLink control unit (XM receiver) connector A (32P) terminals No. 17 and body ground: There should be no continuity. A short in the wire
    Check for continuity between AcuraLink control unit (XM receiver) connector A (32P) terminals No. 1 and No. 17: There should be no continuity. A short to power in the wire
    Check for continuity between AcuraLink control unit (XM receiver) connector A (32P) terminals No. 18 and body ground: There should be no continuity. A short in the wire
    Check for continuity between AcuraLink control unit (XM receiver) connector A (32P) terminals No. 1 and No. 18: There should be no continuity. A short to power in the wire
    Check for continuity between AcuraLink control unit (XM receiver) connector A (32P) terminals No. 19 and body ground: There should be no continuity. A short in the wire
    Check for continuity between AcuraLink control unit (XM receiver) connector A (32P) terminals No. 1 and No. 19: There should be no continuity. A short to power in the wire
    Navi Disconnect these items:
    • AcuraLink control unit (XM receiver) connector A (32P)
    • Audio-Navigation unit connector C (28P)
    		 Check for continuity between AcuraLink control unit (XM receiver) connector A (32P) terminals No. 20 and body ground: There should be no continuity. A short in the wire
    Check for continuity between AcuraLink control unit (XM receiver) connector A (32P) terminals No. 1 and No. 20: There should be no continuity. A short to power in the wire
    Disconnect audio-navigation unit connector C (28P) Check for continuity between AcuraLink control unit (XM receiver) connector A (32P) terminals No. 17 and body ground: There should be no continuity. A short in the AcuraLink control unit (XM receiver)
    Check for continuity between AcuraLink control unit (XM receiver) connector A (32P) terminals No. 18 and body ground: There should be no continuity. A short in the AcuraLink control unit (XM receiver)
    Check for continuity between AcuraLink control unit (XM receiver) connector A (32P) terminals No. 19 and body ground: There should be no continuity. A short in the AcuraLink control unit (XM receiver)
    Check for continuity between AcuraLink control unit (XM receiver) connector A (32P) terminals No. 20 and body ground: There should be no continuity. A short in the AcuraLink control unit (XM receiver)
    Disconnect AcuraLink control unit (XM receiver) connector A (32P) Check for continuity between AcuraLink control unit (XM receiver) connector A (32P) terminals No. 17 and body ground: There should be no continuity. A short in the audio-navigation unit
    Check for continuity between AcuraLink control unit (XM receiver) connector A (32P) terminals No. 18 and body ground: There should be no continuity. A short in the audio-navigation unit
    Check for continuity between AcuraLink control unit (XM receiver) connector A (32P) terminals No. 19 and body ground: There should be no continuity. A short in the audio-navigation unit
    Check for continuity between AcuraLink control unit (XM receiver) connector A (32P) terminals No. 20 and body ground: There should be no continuity. A short in the audio-navigation unit
    HFL Disconnect these items:
    • AcuraLink control unit (XM receiver) connector A (32P)
    • HandsFreeLink control unit 28P connector
    		 Check for continuity between AcuraLink control unit (XM receiver) connector A (32P) terminals No. 24 and HandsFreeLink control unit 28P connector terminal No. 20: There should be continuity. An open in the wire
    Check for continuity between AcuraLink control unit (XM receiver) connector A (32P) terminals No. 25 and HandsFreeLink control unit 28P connector terminal No. 21: There should be continuity. An open in the wire
    Check for continuity between AcuraLink control unit (XM receiver) connector A (32P) terminals No. 22 and HandsFreeLink control unit 28P connector terminal No. 7: There should be continuity. An open in the wire
    Check for continuity between AcuraLink control unit (XM receiver) connector A (32P) terminals No. 23 and HandsFreeLink control unit 28P connector terminal No. 6: There should be continuity. An open in the wire
    Check for continuity between AcuraLink control unit (XM receiver) connector A (32P) terminals No. 24 and body ground: There should be no continuity. A short in the wire
    Check for continuity between AcuraLink control unit (XM receiver) connector A (32P) terminals No. 1 and No. 24: There should be no continuity. A short to power in the wire
    Check for continuity between AcuraLink control unit (XM receiver) connector A (32P) terminals No. 25 and body ground: There should be no continuity. A short in the wire
    Check for continuity between AcuraLink control unit (XM receiver) connector A (32P) terminals No. 1 and No. 25: There should be no continuity. A short to power in the wire
    HFL Disconnect these items:
    • AcuraLink control unit(XM receiver) connector A (32P)
    • HandsFreeLink control unit 28P connector
    		 Check for continuity between AcuraLink control unit (XM receiver) connector A (32P) terminals No. 22 and body ground: There should be no continuity. A short in the wire
    Check for continuity between AcuraLink control unit (XM receiver) connector A (32P) terminals No. 1 and No. 22: There should be no continuity. A short to power in the wire
    Check for continuity between AcuraLink control unit (XM receiver) connector A (32P) terminals No. 23 and body ground: There should be no continuity. A short in the wire
    Check for continuity between AcuraLink control unit (XM receiver) connector A (32P) terminals No. 1 and No. 23: There should be no continuity. A short to power in the wire
    Disconnect HandsFreeLink control unit 28P connector Check for continuity between AcuraLink control unit (XM receiver) connector A (32P) terminals No. 24 and body ground: There should be no continuity. A short in the AcuraLink control unit (XM receiver)
    Check for continuity between AcuraLink control unit (XM receiver) connector A (32P) terminals No. 25 and body ground: There should be no continuity. A short in the AcuraLink control unit (XM receiver)
    Check for continuity between AcuraLink control unit (XM receiver) connector A (32P) terminals No. 22 and body ground: There should be no continuity. A short in the AcuraLink control unit (XM receiver)
    Check for continuity between AcuraLink control unit (XM receiver) connector A (32P) terminals No. 23 and body ground: There should be no continuity. A short in the AcuraLink control unit (XM receiver)
    Disconnect AcuraLink control unit (XM receiver) connector A (32P) Check for continuity between AcuraLink control unit (XM receiver) connector A (32P) terminals No. 24 and body ground: There should be no continuity. A short in the HandsFreeLink control unit
    Check for continuity between AcuraLink control unit (XM receiver) connector A (32P) terminals No. 25 and body ground: There should be no continuity. A short in the HandsFreeLink control unit
    Check for continuity between AcuraLink control unit (XM receiver) connector A (32P) terminals No. 22 and body ground: There should be no continuity. A short in the HandsFreeLink control unit
    Check for continuity between AcuraLink control unit (XM receiver) connector A (32P) terminals No. 23 and body ground: There should be no continuity. A short in the HandsFreeLink control unit
    Audio Disconnect these items:
    • AcuraLink control unit(XM receiver) connector A (32P)
    • Audio-Navigation unit connector D (14P)
    		 Check for continuity between AcuraLink control unit (XM receiver) connector A (32P) terminals No. 30 and audio-navigation unit connector D (14P) terminal No. 9: There should be continuity. An open in the wire
    Check for continuity between AcuraLink control unit (XM receiver) connector A (32P) terminals No. 31 and audio-navigation unit connector D (14P) terminal No. 10: There should be continuity. An open in the wire
    Check for continuity between AcuraLink control unit (XM receiver) connector A (32P) terminals No. 30 and body ground: There should be no continuity. A short in the wire
    Check for continuity between AcuraLink control unit (XM receiver) connector A (32P) terminals No. 1 and No. 30: There should be no continuity. A short to power in the wire
    Check for continuity between AcuraLink control unit (XM receiver) connector A (32P) terminals No. 31 and body ground: There should be no continuity. A short in the wire
    Check for continuity between AcuraLink control unit (XM receiver) connector A (32P) terminals No. 1 and No. 31: There should be no continuity. A short to power in the wire
    Disconnect audio-navigation unit connector D (14P) Check for continuity between AcuraLink control unit (XM receiver) connector A (32P) terminals No. 30 and body ground: There should be no continuity. A short in the AcuraLink control unit (XM receiver)
    Check for continuity between AcuraLink control unit (XM receiver) connector A (32P) terminals No. 31 and body ground: There should be no continuity. A short in the AcuraLink control unit (XM receiver)
    Disconnect AcuraLink control unit (XM receiver) connector A (32P) Check for continuity between AcuraLink control unit (XM receiver) connector A (32P) terminals No. 30 and body ground: There should be no continuity. A short in the audio-navigation unit
    Check for continuity between AcuraLink control unit (XM receiver) connector A (32P) terminals No. 31 and body ground: There should be no continuity. A short in the audio-navigation unit
    (1) With ACC
    (2) With active damper system
    (3) With ACC
    NOTE: If the XM antenna connection condition is faulty, XM ANTENNA is indicated on the front climate control unit display.
  7. If the indication does not go away, confirm DTCs, and refer to the relevant system troubleshooting and input tests.
scientia non olet · About LEMON Manuals
