Power Tailgate Inside Beeper Replacement

WARNING: This page is about a different car, the 2013 Acura MDX, 2012 Acura MDX, 2011 Acura MDX, and 2010 Acura MDX. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: SRS components are located in this area. Review the SRS component locations (see COMPONENT LOCATION INDEX ), and precautions and procedures (see PRECAUTIONS AND PROCEDURES ) before doing repairs or servicing.
  1. Open the tailgate and remove the left quarter pillar trim (see QUARTER PILLAR TRIM ).
  2. Disconnect the 8P connector (A) from the power tailgate drive unit (B).
    Fig 1: Identifying 8P Connector And Power Tailgate Drive Unit
    G08054058Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Disconnect the 2P connector (A), and remove the beeper (B) from the power tailgate drive unit.

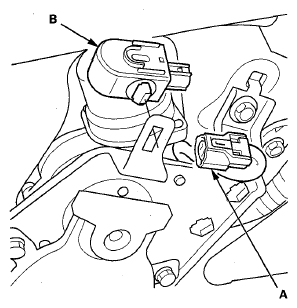

    Fig 2: Identifying Power Tailgate Drive Unit 2P Connector And Beeper
    G08054059Courtesy of AMERICAN HONDA MOTOR CO., INC.
  4. Install in the reverse order of removal.
