Pinch Sensor Replacement

WARNING: This page is about a different car, the 2013 Acura MDX, 2012 Acura MDX, 2011 Acura MDX, and 2010 Acura MDX. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open the tailgate.
  2. Remove the clips, screws and nuts from the pinch sensor (A).
    NOTE: The illustration shows left side pinch sensor, right side is similarly configured.

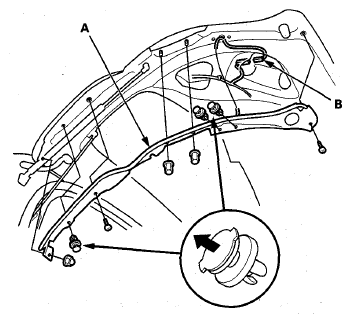

    Fig 1: Identifying Pinch Sensor Replacement Components
    G08054068Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Disconnect the 2P connector (B) from the pinch sensor.
  4. Install in the reverse order of removal.
