Inside Tailgate Switch Test/Replacement

WARNING: This page is about a different car, the 2013 Acura MDX, 2012 Acura MDX, 2011 Acura MDX, and 2010 Acura MDX. However, it is still accessible from the selected car via links, so may be relevant.

Carefully pry out the inside tailgate switch (A), and disconnect the 5P connector (B) from the switch.

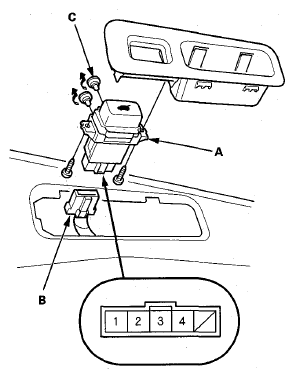

Fig 1: Identifying Tailgate Switch
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Check for continuity between the terminals in each switch position according to the table.

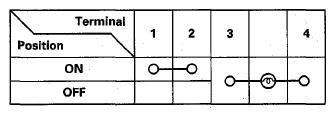

Fig 2: Inside Tailgate Switch Continuity Reference Chart
Courtesy of AMERICAN HONDA MOTOR CO., INC.
If the continuity is not as specified, replace the bulbs (C) or the switch.
