Driver's Door Power Tailgate Switch Test/Replacement

WARNING: This page is about a different car, the 2013 Acura MDX, 2012 Acura MDX, 2011 Acura MDX, and 2010 Acura MDX. However, it is still accessible from the selected car via links, so may be relevant.

Remove the driver's door panel (see FRONT DOOR PANEL REMOVAL/INSTALLATION ).
Disconnect the 7P connector (A) from the fuel fill door opener/driver's door power tailgate switch (B), then push the switch out from behind the door panel.

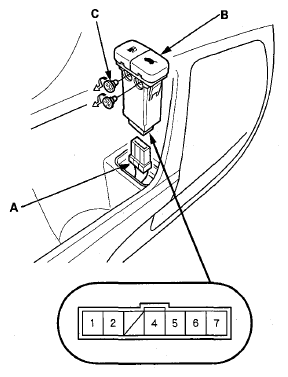

Fig 1: Identifying Fuel Fill Door Opener/Driver's Door Power Tailgate Switch
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Check for continuity between the terminals in each switch position according to the table.

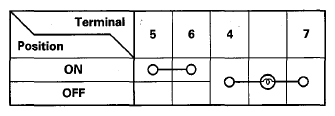

Fig 2: Driver's Door Power Tailgate Switch Continuity Reference Chart
Courtesy of AMERICAN HONDA MOTOR CO., INC.
If the continuity is not as specified, replace the bulbs (C) or the switch.
