Without the HDS

WARNING: This page is about a different car, the 2013 Honda Fit, 2012 Honda Fit, 2011 Honda Fit, 2010 Honda Fit, and 2009 Honda Fit. However, it is still accessible from the selected car via links, so may be relevant.

Open the fuse access panel (A).

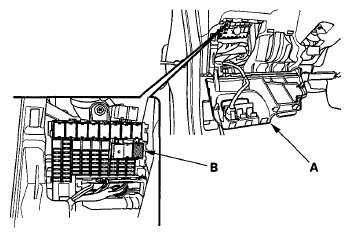

Fig 1: Identifying Fuse Access Panel & PGM-FI Main Relay
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the PGM-FI main relay 2 (B) from the under-dash fuse/relay box.
Start the engine, and let it idle until it stalls.
NOTE: If any DTCs are stored, clear and ignore them.
Turn the ignition switch to LOCK (0).
Remove the fuel fill cap to relieve the pressure in the fuel tank.
Do the battery terminal disconnection procedure (see BATTERY TERMINAL DISCONNECTION AND RECONNECTION ).
Remove the quick-connect fitting cover (A).

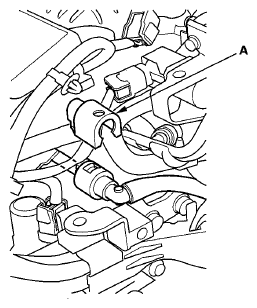

Fig 2: Identifying Quick-Connect Fitting Cover
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Check the fuel quick-connect fitting for dirt, and clean it if needed.
Place a rag or shop towel over the quick-connect fitting (A).

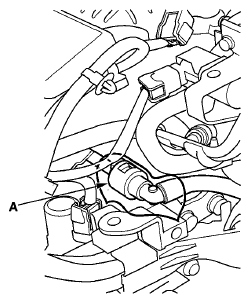

Fig 3: Identifying Quick-Connect Fitting (1 Of 2)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Disconnect the quick-connect fitting (A): Hold the connector (B) with one hand, and squeeze the retainer tabs (C) with the other hand to release them from the locking tabs (D). Pull the connector off.
NOTE:
- Be careful not to damage the line (E) or other parts.
- Do not use tools.
- If the connector does not move, keep the retainer tabs pressed down, and alternately pull and push the connector until it comes off easily.
- Do not remove the retainer from the line; once removed, the retainer must be replaced with a new one.

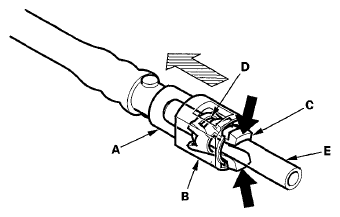

  Fig 4: Identifying Quick-Connect Fitting (2 Of 2)
  Courtesy of AMERICAN HONDA MOTOR CO., INC.
After disconnecting the quick-connect fitting, check it for dirt or damage (see step 4 ).
Do the battery terminal reconnection procedure (see BATTERY TERMINAL DISCONNECTION AND RECONNECTION ).
