Rear Blower Motor Replacement

WARNING: This page is about a different car, the 2013 Acura MDX, 2012 Acura MDX, 2011 Acura MDX, and 2010 Acura MDX. However, it is still accessible from the selected car via links, so may be relevant.

SRS components are located in this area. Review the SRS component locations (see COMPONENT LOCATION INDEX ), and the precautions and procedures (see PRECAUTIONS AND PROCEDURES ) before doing repairs or service.

Remove the center console (see CENTER CONSOLE REMOVAL/INSTALLATION ).
Disconnect the 2P connector (A) from the rear blower motor (B), then detach the wire harness clips (C). Remove the self-tapping screws and the rear blower motor from the rear HVAC unit.

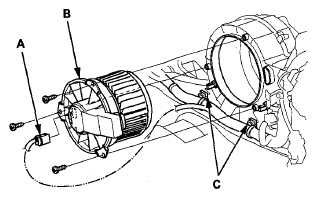

Fig 1: Locating 2P Connector, Rear Blower Motor And Wire Harness Clips
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the motor in the reverse order of removal.
