Detailed Information & Settings

WARNING: This page is about a different car, the 2013 Acura MDX, 2012 Acura MDX, 2011 Acura MDX, and 2010 Acura MDX. However, it is still accessible from the selected car via links, so may be relevant.

These sections allow you to run a specific diagnostic and allows additional setting choices for some screens that are not shown when selecting an icon from the System Links screen.

When you select the Detail Information & Setting menu, the main diagnosis menu is displayed.

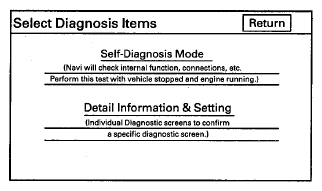

Fig 1: Displaying - Select Diagnosis Items Menu

Courtesy of AMERICAN HONDA MOTOR CO., INC.

After the display changes to the Diagnostic Menu, select the item you want to check, and the test begins. To return to the previous screen, select Return.

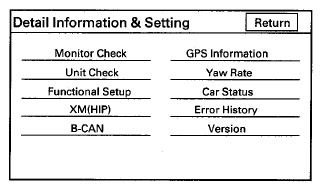

Fig 2: Displaying - Detail Information And Setting

Courtesy of AMERICAN HONDA MOTOR CO., INC.
