Self-Diagnostic Function

WARNING: This page is about a different car, the 2013 Acura MDX, 2012 Acura MDX, 2011 Acura MDX, and 2010 Acura MDX. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: This procedure should be used only if HDS is unavailable.

To run the self-diagnostic function, do the following:

Turn the ignition switch to ON (II).
Press and hold the BACK button (A) or the HFL BACK button (B) for more than 5 seconds.

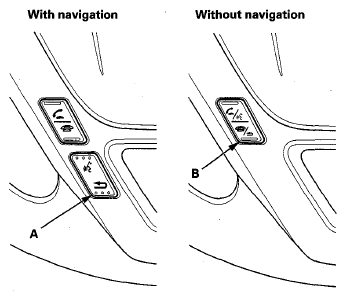

Fig 1: Identifying Back And HFL Back Button
Courtesy of AMERICAN HONDA MOTOR CO., INC.
When the HandsFreeLink system enters the self-diagnostic function, the following will occur.
- If the system has not completed testing for DTCs, the HandsFreeLink system says "The hands free system test is in progress."
- If there is no DTC, the HandsFreeLink system says "The hands free system is OK."
- If there is any DTC, the HandsFreeLink system says "The hands free system needs to be serviced."
- The self-diagnostic function ends when the units return to idle state.
  NOTE: The self-diagnostic function can only be initiated while the HFL is in an idle state.
