Navigation Through Menus

WARNING: This page is about a different car, the 2013 Acura MDX, 2012 Acura MDX, 2011 Acura MDX, and 2010 Acura MDX. However, it is still accessible from the selected car via links, so may be relevant.

To skip a voice prompt, press and release the TALK button (A) or the HFL TALK button (B) while the HFL system is speaking. The system beings listening for your next voice command.

To go back a step in a voice command sequence, press and release the BACK button (C) or the HFL BACK button (D), or press the TALK button or the HFL TALK button and say "Go back." If you don't say anything while the HFL system is listening for your voice command, it times out and stops voice recognition. The next time you press and release the TALK button or the HFL TALK button, the HFL system begins listening from the point it timed out.

If you've finished or want to stop a voice command sequence at any time, press and release the BACK button or the HFL BACK button, or press and release the TALK button or the HFL TALK button, wait for the beep, and say "Cancel." The next time you press and release the TALK button or the HFL TALK button, the HFL system begins from its main menu, and MAIN appears on the multi-information display (MID) in the instrument panel. To avoid keeping the audio system muted, press and release the BACK button or the HFL BACK button when you are finished.

NOTE: You can say multiple commands in one sequence, like "Phone set-up-pair" after pressing the TALK button or the HFL TALK button.

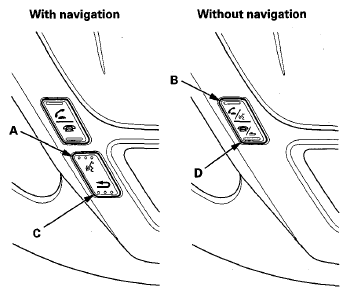

Fig 1: Identifying Talk, HFL Talk, Back And HFL Back Buttons
G08054284Courtesy of AMERICAN HONDA MOTOR CO., INC.
