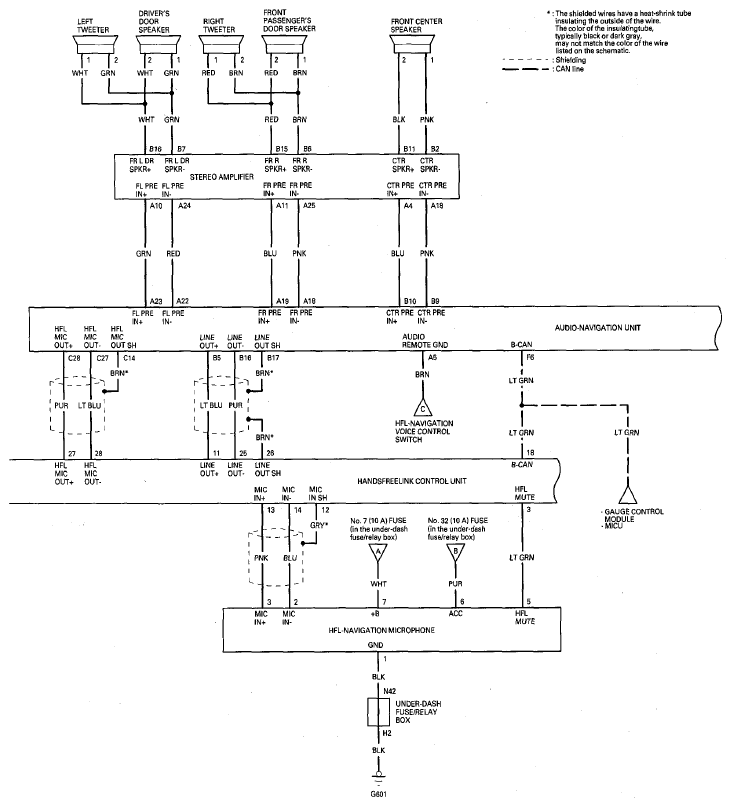

Fig 1: Handsfreelink System (With Navigation) - Circuit Diagram (1 Of 6)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

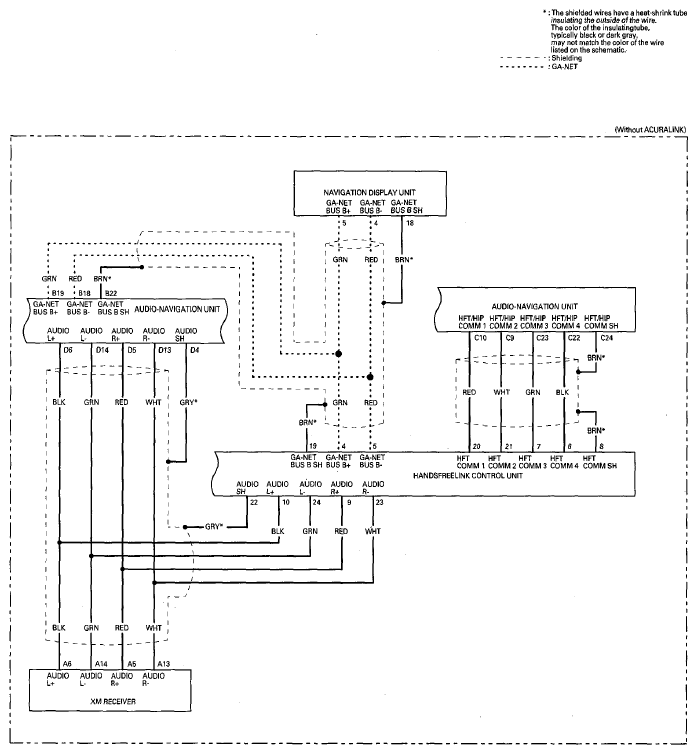

Fig 2: Handsfreelink System (With Navigation) - Circuit Diagram (2 Of 6)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

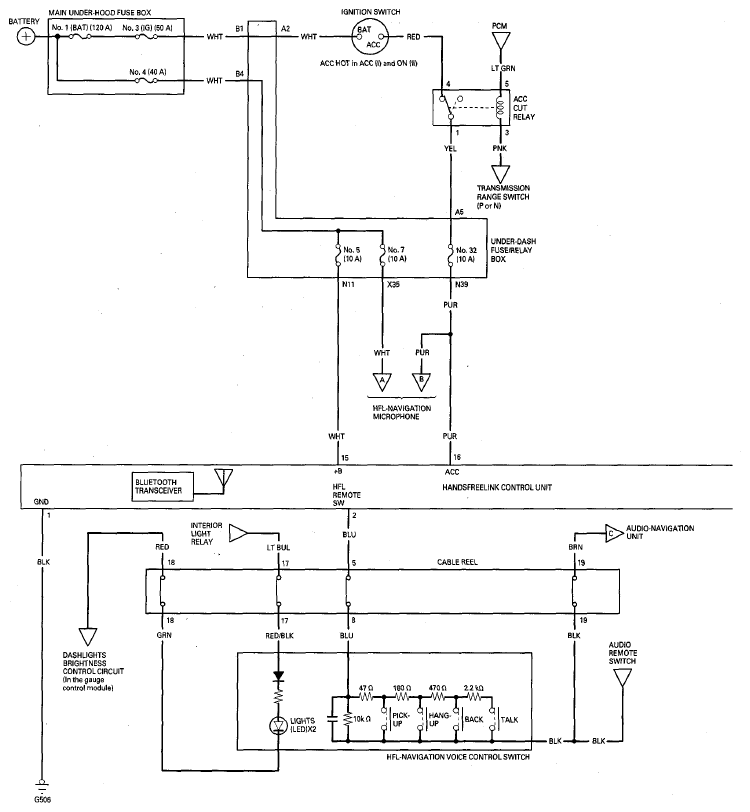

Fig 3: Handsfreelink System (With Navigation) - Circuit Diagram (3 Of 6)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

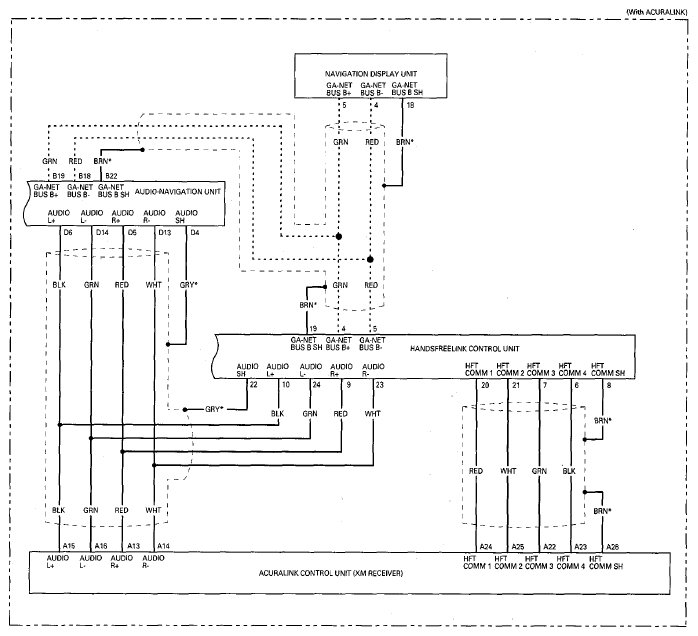

Fig 4: Handsfreelink System (With Navigation) - Circuit Diagram (4 Of 6)
