Switch Test/Replacement

WARNING: This page is about a different car, the 2013 Acura MDX, 2012 Acura MDX, 2011 Acura MDX, and 2010 Acura MDX. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the center console panel CENTER CONSOLE LATCH PANEL REMOVAL/INSTALLATION ).
  2. Disconnect the 16P [12P] connector from the seat ventilation switch (A).

    []: Front passenger's seat ventilation switch

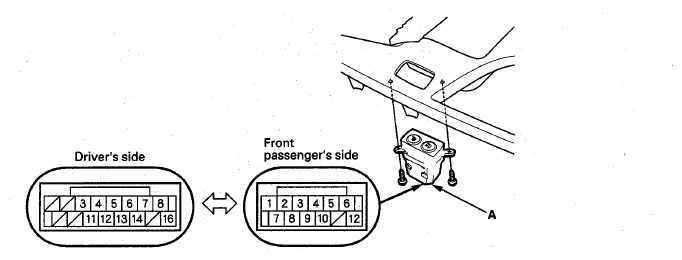

    Fig 1: Identifying 16P Connector Of Seat Ventilation Switch
    G08053846Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Remove the two screws and the switch.
  4. Check for continuity between the terminals in each switch position according to the table.
    NOTE:
    • Make sure the correct test lead (+ or -) is placed on the terminal.
    • When checking for continuity across the diode, use the diode setting ( ) on the digital volt/ohm meter to check the diode bias.
    • Be careful of this characteristic; a diode is one that conducts fully in one direction (forward) and not at all in the opposite direction (reverse).

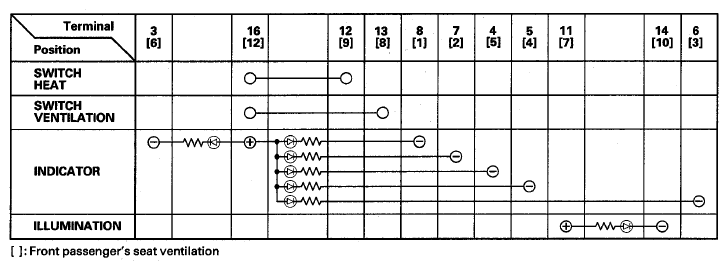

      Fig 2: Switch Continuity Reference Chart
      G08053847Courtesy of AMERICAN HONDA MOTOR CO., INC.

      []: Front passenger's seat ventilation

  5. If the continuity check is not as specified, replace the seat ventilation switch.
  6. Install the parts in the reverse order of removal.
