Third Row Child Seat Tether Anchor Replacement

WARNING: This page is about a different car, the 2013 Acura MDX, 2012 Acura MDX, 2011 Acura MDX, and 2010 Acura MDX. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the rear trim panel (see step 2 under TRIM REMOVAL/INSTALLATION - PILLAR AREAS ).
  2. Remove the screws (A), and remove the third row child seat tether anchors (B).

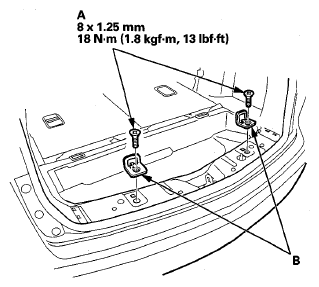

    Fig 1: Third Row Child Seat Tether Anchors And Screws With Torque Specifications
    G08054390Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Install the anchor in the reverse order of removal, and apply medium strength liquid thread lock to the threads of the child seat tether anchor screws.
