Wireless Headphone Battery Replacement

WARNING: This page is about a different car, the 2013 Acura MDX, 2012 Acura MDX, 2011 Acura MDX, and 2010 Acura MDX. However, it is still accessible from the selected car via links, so may be relevant.

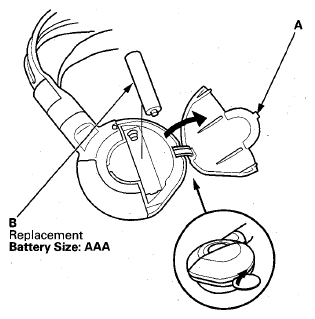

  1. Open the battery cover (A), and remove the battery (B).
    Fig 1: Opening Battery Cover
    G08055611Courtesy of AMERICAN HONDA MOTOR CO., INC.

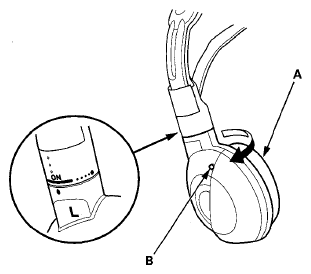

  2. Turn the left earpiece (A) to ON, and confirm that the indicator (B) comes on after the battery is replaced.
    Fig 2: Turning Left Earpiece To On
    G08055612Courtesy of AMERICAN HONDA MOTOR CO., INC.
