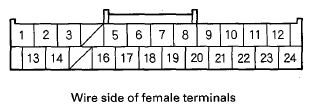

REAR CONTROLLER AND SCREEN 24P CONNECTOR
| Cavity | Wire Color | Terminal Name | Connect to | ||
|---|---|---|---|---|---|
| 1 | WHT | + B | No. 7 (10 A) fuse in the under-dash fuse/relay box | ||
| 2 | YEL | IG1 | No. 21 (7.5 A) fuse in the under-dash fuse/relay box | ||
| 3 | LT BLU | GA-NET RR BUS + | Audio-Navigation unit | ||
| 5 | PNK | RR NTSC GND | Audio-Navigation unit | ||
| 6 | WHT | RES AUDIO OUT GND | Audio-Navigation unit | ||
| 7 | BRN(1) | RES AUDIO OUT SH | Shield for terminals No. 6, No. 18, and No. 19 | ||
| 8 | PNK | HP R/L OUT GND | RES auxiliary jack assembly | ||
| 9 | BRN(1) | HP R/L OUT SH | Shield for terminals No. 8, No. 20, and No. 21 | ||
| 10 | GRY | SCTY1 | Multiplex integrated control unit | ||
| 11 | LT BLU | ILLUMI+ (INT) | Interior light relay (Lights-on signal) | ||
| 12 | YEL | SYSTEM ACC | Audio-Navigation unit | ||
| 13 | BRN(1) | GA-NET RR BUS SH | Shield for terminals No. 3 and No. 14 | ||
| 14 | PUR | GA-NET RR BUS- | Audio-Navigation unit | ||
| 16 | BLU | RR NTSC | Audio-Navigation unit | ||
| 17 | BRN(1) | RR NTSC SH | Shield for terminals No. 5 and No. 16 | ||
| 18 | RED | RES AUDIO OUT L | Audio-Navigation unit | ||
| 19 | BLK | RES AUDIO OUT R | Audio-Navigation unit | ||
| 20 | GRN | HP LOUT | RES auxiliary jack assembly | ||
| 21 | BLU | HP R OUT | RES auxiliary jack assembly | ||
| 22 | PNK | SCTY3 | Navigation display unit | ||
| 23 | RED | ILLUMI- (SW/RES) | Dash lights brightness control circuit in the gauge control module | ||
| 24 | BLK | GND | Body ground to G506 | ||
|
|||||
