Rear Window

WARNING: This page is about a different car, the 2013 Acura MDX, 2012 Acura MDX, 2011 Acura MDX, and 2010 Acura MDX. However, it is still accessible from the selected car via links, so may be relevant.

Wiper arm park position

When the wiper arm stops at the park position, confirm that it is at the standard position.
1. Position at about 11.2 mm (0.4 in) from the black ceramic area (A)
Washer nozzle position
When you turn on the washers, confirm more than 50% of the washer fluid lands within the spray area. If the spray area is not within the standard positions, adjust the nozzles.
1. b: Position at about 130.2 mm (5.1 in) from the rear washer nozzle (B)

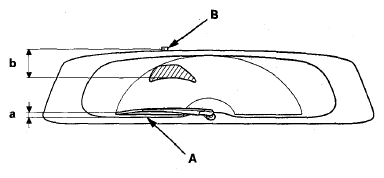

Fig 1: Identifying Black Ceramic Area And Rear Washer Nozzle
Courtesy of AMERICAN HONDA MOTOR CO., INC.
