Washer Tube Replacement

WARNING: This page is about a different car, the 2013 Acura MDX, 2012 Acura MDX, 2011 Acura MDX, and 2010 Acura MDX. However, it is still accessible from the selected car via links, so may be relevant.

Remove the washer nozzles and clips, then remove the washer tubes.
Windshield/Rear Window Washers

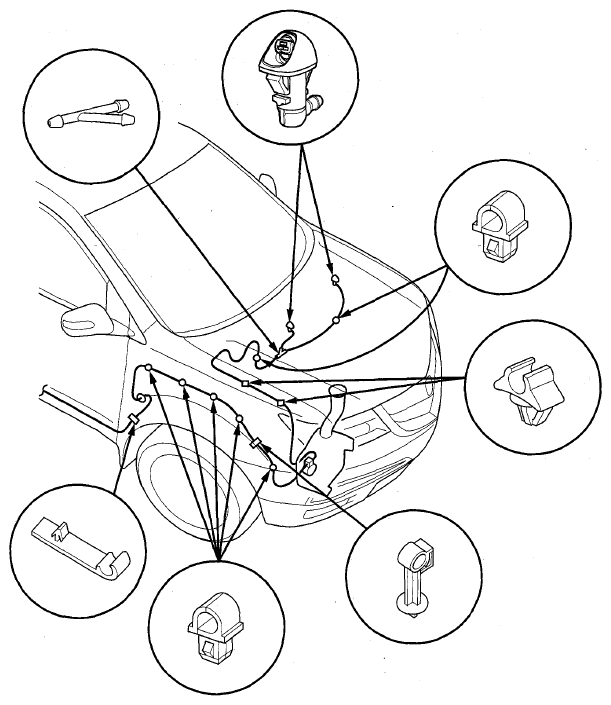

Fig 1: Identifying Front Washer Tube And Related Parts
Courtesy of AMERICAN HONDA MOTOR CO., INC.

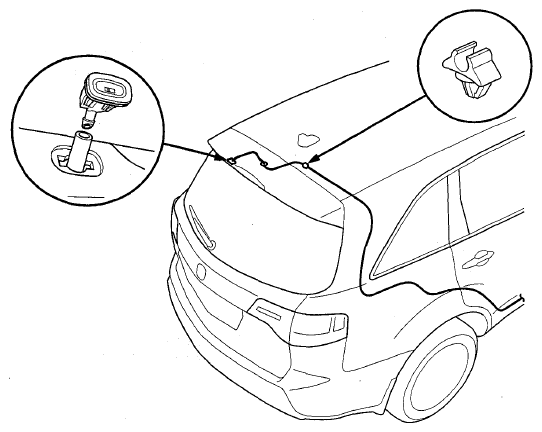

Fig 2: Identifying Rear Washer Tube And Related Parts
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Headlight Washer (Canada models)

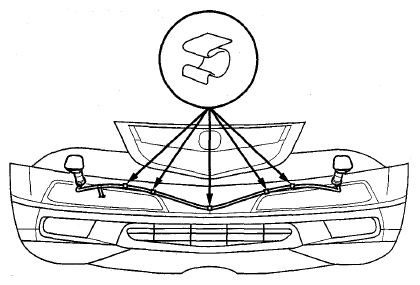

Fig 3: Identifying Headlight Washer
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the parts in the reverse order of removal. Take care not to pinch the washer tubes. Check the washer's operation.
