Washer Reservoir Replacement

WARNING: This page is about a different car, the 2013 Acura MDX, 2012 Acura MDX, 2011 Acura MDX, and 2010 Acura MDX. However, it is still accessible from the selected car via links, so may be relevant.

Remove the right inner fender (see FRONT INNER FENDER REPLACEMENT ).
Disconnect the 2P connectors (A) from the washer motor(s) (B) and the washer fluid level switch (C).
Washer Reservoir Capacity

4.0 L (4.2 US qt): USA models

5.8 L (6.1 US qt): Canada models

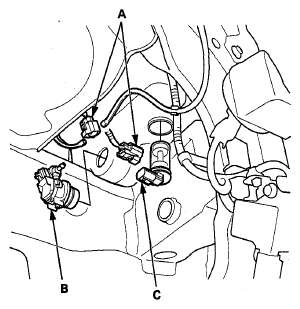

Fig 1: Identifying 2P Connector, Washer Motor And Washer Fluid Level Switch
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Disconnect the washer tubes.
Remove the bolts and the washer reservoir.

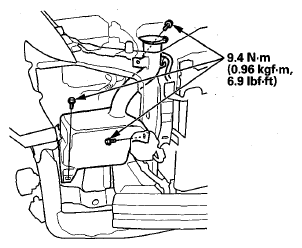

Fig 2: Washer Reservoir Bolts With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install in the reverse order of removal. Check the washer motor operation.
