Rear Window Wiper Motor Replacement

WARNING: This page is about a different car, the 2013 Acura MDX, 2012 Acura MDX, 2011 Acura MDX, and 2010 Acura MDX. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open the tailgate, and remove the tailgate lower trim panel (see TRIM REMOVAL/INSTALLATION - TAILGATE AREA ).
  2. Remove the mounting nut (A), the wiper arm (B) and the special nut (C).

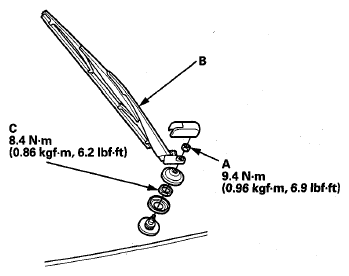

    Fig 1: Mounting Nut, Wiper Arm And Special Nut With Torque Specifications
    G08055455Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Disconnect the 4P connector (A) and remove the three mounting bolts (B), then remove the rear window wiper motor (C).

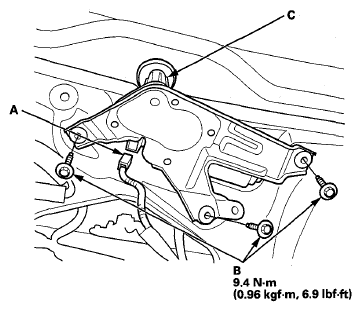

    Fig 2: 4P Connector, Rear Window Wiper Motor And Mounting Bolts With Torque Specifications
    G08055456Courtesy of AMERICAN HONDA MOTOR CO., INC.
  4. Install in the reverse order of removal.
