Canada models

WARNING: This page is about a different car, the 2013 Acura MDX, 2012 Acura MDX, 2011 Acura MDX, and 2010 Acura MDX. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the right inner fender (see FRONT INNER FENDER REPLACEMENT ).
  2. Disconnect the 2P connector (A) from the washer motor (B).

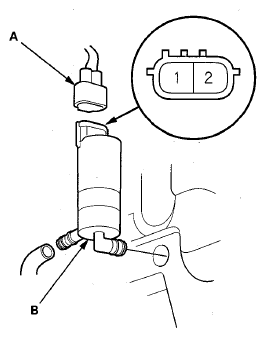

    Fig 1: Identifying 2P Connector And Washer Motor
    G08055459Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Test the motor by connecting battery power to headlight washer motor 2P connector terminal No. 1 and ground to terminal No. 2. The motor should run.
    • If the motor does not run or fails to run smoothly, replace it.
    • If the motor runs smoothly, but little or no washer fluid is pumped, check for a disconnected or blocked washer hose, or a clogged washer motor outlet.
  4. Install the washer motor in the reverse order of removal.
