Ambient Light Test

WARNING: This page is about a different car, the 2013 Acura MDX, 2012 Acura MDX, 2011 Acura MDX, and 2010 Acura MDX. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the roof console  and disconnect the 20P connector (A).

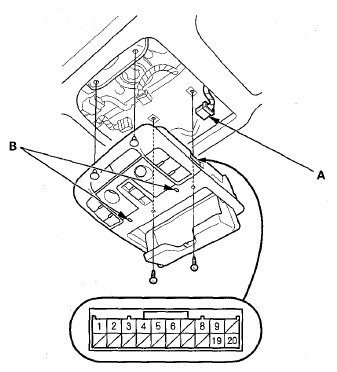

    Fig 1: Identifying 20P Connector And Ambient Lights
    G08055368Courtesy of AMERICAN HONDA MOTOR CO., INC.
  2. Connect roof console 20P connector terminal No. 1 to battery power and terminal No. 2 to body ground. The ambient lights (B) should turn on. If they do not turn on, replace the roof console.
