Without Navigation

WARNING: This page is about a different car, the 2013 Acura MDX, 2012 Acura MDX, 2011 Acura MDX, and 2010 Acura MDX. However, it is still accessible from the selected car via links, so may be relevant.

Remove the roof console (see ROOF CONSOLE INPUT TEST/REPLACEMENT ).
Slide the mirror harness upper cover (A) forward, then remove the mirror harness cover (B) from the harness cover base (C).

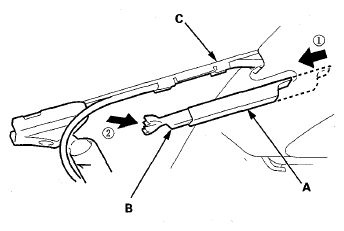

Fig 1: Sliding Mirror Harness Upper Cover Forward
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Disconnect the connector (A), and detach the harness clip (B).

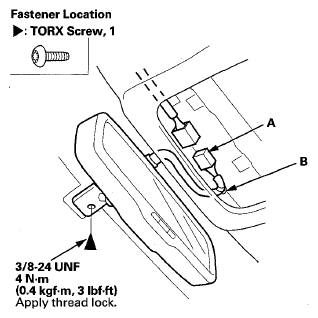

Fig 2: Rearview Mirror Connector And Harness Clip With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Using a TORX T20 bit, loosen the screw.
While holding the rearview mirror (A), pull the mirror harness connector (B) out through the headliner (C), then remove the rearview mirror from the mount (D).

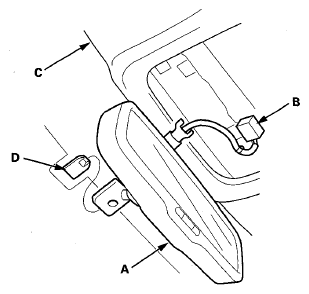

Fig 3: Identifying Rearview Mirror, Mirror Harness Connector And Headliner
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the mirror in the reverse order of removal, and note these items:
- If the clip is damaged or stress-whitened, replace it with new one.
- Before installing the mirror, remove the TORX screw, and apply medium strength liquid thread lock to it.
- Make sure the connector is plugged in properly.
