With Navigation

WARNING: This page is about a different car, the 2013 Acura MDX, 2012 Acura MDX, 2011 Acura MDX, and 2010 Acura MDX. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the connector (A).

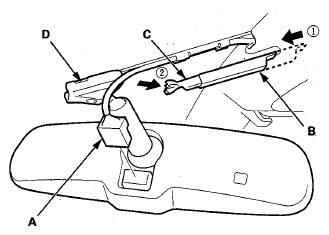

    Fig 1: Sliding Mirror Harness Upper Cover Forward
    G08055149Courtesy of AMERICAN HONDA MOTOR CO., INC.
  2. Slide the mirror harness upper cover (B) forward, then remove the mirror harness cover (C) from the mirror base (D).
  3. Using a TORX T20 bit, loosen the screw, then slide the rearview mirror (A) rearward and off the mount (B).

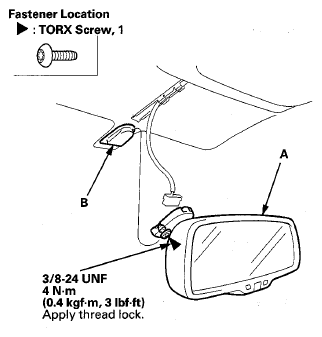

    Fig 2: Rearview Mirror Fastener Location With Torque Specifications
    G08055150Courtesy of AMERICAN HONDA MOTOR CO., INC.
  4. Install the mirror in the reverse order of removal, and note these items:
    • Before installing the mirror, remove the TORX screw, and apply medium strength liquid thread lock to it.
    • Make sure the connector is plugged in properly.
