Rear Door Side Sill Seal Replacement

WARNING: This page is about a different car, the 2013 Acura MDX, 2012 Acura MDX, 2011 Acura MDX, and 2010 Acura MDX. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

Take care not to scratch the door.
Use a clip remover to remove the clips.

Detach the clips, then remove the door side sill seal (A).

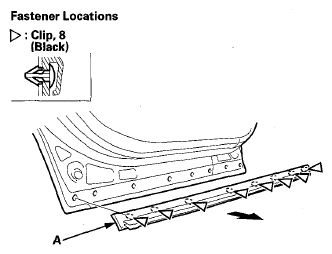

Fig 1: Removing Door Side Sill Seal And Clips
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the side sill seal in the reverse order of removal, and note these items:
- If the clips are damaged or stress-whitened, replace them with new ones.
- Push the clips into place securely.
