Rear Door Sash Inner Trim Replacement

WARNING: This page is about a different car, the 2013 Acura MDX, 2012 Acura MDX, 2011 Acura MDX, and 2010 Acura MDX. However, it is still accessible from the selected car via links, so may be relevant.

Special Tools Required

KTC Trim Tool Set SOJATP2014*

*Available through the Acura Tool and Equipment Program, 888-424-6857

NOTE:

Use the appropriate tool from the KTC trim tool set to avoid damage when removing components.
Take care not to scratch the door.

Remove the door panel
Using a clip remover, detach the clips fastening the rear door sash inner trim (A).

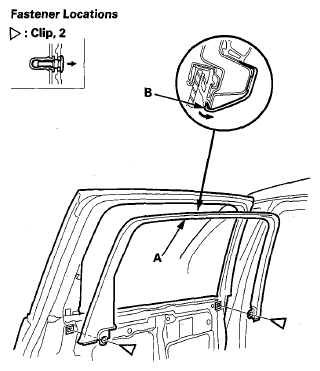

Fig 1: Detaching Clips Fastening Rear Door Sash Inner Trim
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Pull the door glass opening side of the trim back to release the hooks (B) from the door glass opening flange of the door sash.
Install the trim in the reverse order of removal, and note these items:
- If the clips are damaged or stress-whitened, replace them with new ones.
- Push the hooks and the clips into place securely.
