Rear Door Rear Sash Outer Trim Replacement

WARNING: This page is about a different car, the 2013 Acura MDX, 2012 Acura MDX, 2011 Acura MDX, and 2010 Acura MDX. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Take care not to scratch the door.
  1. Lower the glass fully.
  2. Remove the door rear sash outer trim (A).
    1. Pull back the door weatherstrip (B), then remove the screw.
    2. Pull the trim up to release the hooks (C) from the door. Take care not to damage the door glass outer weatherstrip (D).

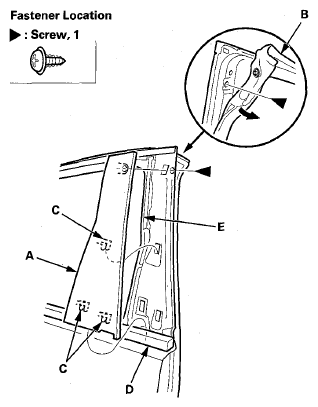

    Fig 1: Pulling Back Door Weatherstrip And Screw
    G08055128Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Install the trim in the reverse order of removal, and make sure the glass run channel (E) is installed in the door sash securely.
