Rear Door Glass Outer Weatherstrip Replacement

WARNING: This page is about a different car, the 2013 Acura MDX, 2012 Acura MDX, 2011 Acura MDX, and 2010 Acura MDX. However, it is still accessible from the selected car via links, so may be relevant.

Special Tools Required

KTC Trim Tool Set SOJATP2014*

*Available through the Acura Tool and Equipment Program, 888-424-6857

NOTE:

If you remove the door glass outer weatherstrip, replace it with a new one because it will bend.
Put on gloves to protect your hands.
Take care not to scratch the door.
Use the appropriate tool from the KTC trim tool set to avoid damage when removing components.

Remove the door panel
Remove the screws from both side edges of the door.

Fig 1: Identifying Door Panel Screws
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Starting at the rear, pull the door glass outer weatherstrip (A) up at each area where the inner molding (B) catches the inside edge of the window slot.

Fig 2: Pulling Door Glass Outer Weatherstrip
Courtesy of AMERICAN HONDA MOTOR CO., INC.

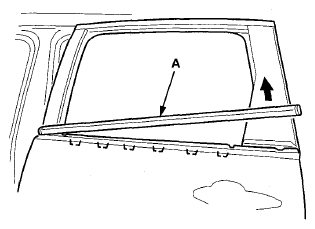

Remove the door glass outer weatherstrip (A).

Fig 3: Removing Door Glass Outer Weatherstrip
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the weatherstrip in the reverse order of removal.
