Front Door Glass Outer Weatherstrip Replacement

WARNING: This page is about a different car, the 2013 Acura MDX, 2012 Acura MDX, 2011 Acura MDX, and 2010 Acura MDX. However, it is still accessible from the selected car via links, so may be relevant.

Special Tools Required

KTC Trim Tool Set SOJATP2014*

*Available through the Acura Tool and Equipment Program, 888-424-6857

NOTE:

If you remove the door glass outer weatherstrip, replace it with a new one because it will bend.
Put on gloves to protect your hands.
Take care not to scratch the door.
Use the appropriate tool from the KTC trim tool set to avoid damage when removing components.

Remove the door panel

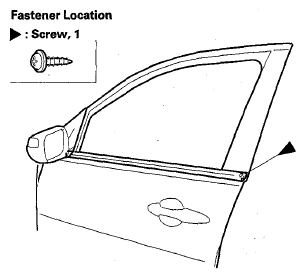

Remove the screw from the rear edge of the door.

Fig 1: Identifying Rear Edge Of Door Screw
Courtesy of AMERICAN HONDA MOTOR CO., INC.

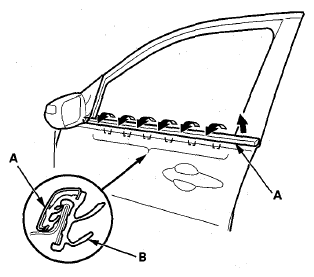

Starting at the rear, pull the door glass outer weatherstrip (A) up at each area where the inner molding (B) catches the inside edge of the window slot.

Fig 2: Pulling Door Glass Outer Weatherstrip And Inner Molding
Courtesy of AMERICAN HONDA MOTOR CO., INC.

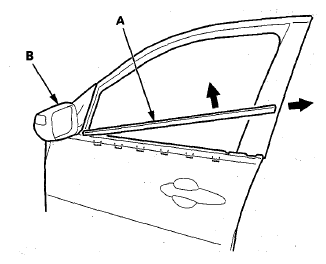

Pull the rear of the glass outer weatherstrip (A) away from the door, then pull the front end of it out from under the power mirror (B).

Fig 3: Pulling Rear Of Glass Outer Weatherstrip From Door
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the weatherstrip in the reverse order of removal.
