Spring/Bump Stop Removal/Installation: Removal

WARNING: This page is about a different car, the 2013 Acura MDX, 2012 Acura MDX, 2011 Acura MDX, and 2010 Acura MDX. However, it is still accessible from the selected car via links, so may be relevant.

Raise and support the vehicle (see LIFT AND SUPPORT POINTS ).
Remove the rear wheel.
Remove the muffler (A) from the muffler hanger (B).

Fig 1: Identifying Muffler And Muffler Hanger
Courtesy of AMERICAN HONDA MOTOR CO., INC.

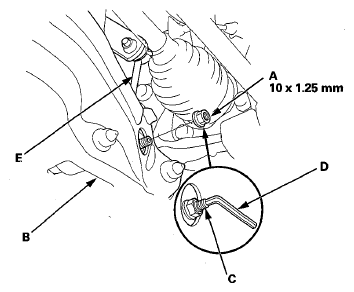

Remove the flange nut (A) while holding the joint pin (C) with a hex wrench (D), and disconnect the stabilizer link (E) from the lower arm B.

Fig 2: Holding Joint Pin Using Hex Wrench
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Position a floor jack under the lower arm B. Raise the floor jack until the suspension begins to compress.

Fig 3: Positioning Floor Jack Under Lower Arm
Courtesy of AMERICAN HONDA MOTOR CO., INC.

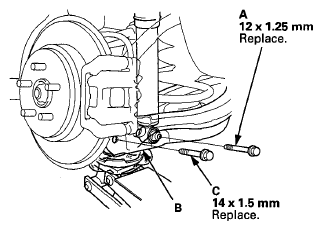

Remove the flange bolt (A) from the bottom of the damper.
Remove the flange bolt (C) from the knuckle.
Lower the floor jack gradually.

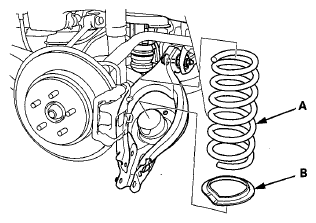

Remove the spring (A) and the lower spring seat (B).

Fig 4: Identifying Spring And Lower Spring Seat
Courtesy of AMERICAN HONDA MOTOR CO., INC.

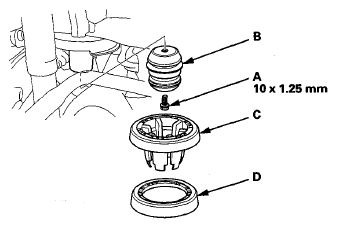

Remove the flange bolt (A) that connects the body, and remove the bump stop (B), the spring guide (C), and the spring mounting cushion (D) if necessary.

Fig 5: Identifying Bump Stop And Related Components

Courtesy of AMERICAN HONDA MOTOR CO., INC.
