Spring/Bump Stop Removal/Installation: Installation

WARNING: This page is about a different car, the 2013 Acura MDX, 2012 Acura MDX, 2011 Acura MDX, and 2010 Acura MDX. However, it is still accessible from the selected car via links, so may be relevant.

Install the bump stop (A), the spring guide (B), and the spring mounting cushion (C), then tighten the flange bolt (D) to the specified torque if removed.

Fig 1: Bump Stop Assembly With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.

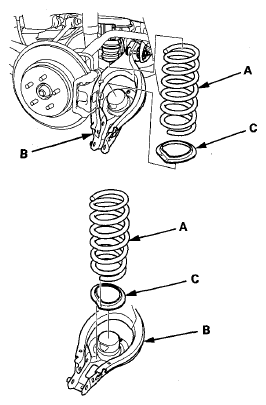

Install the spring (A) and the lower spring seat (C).
Align the bottom of the spring with the stepped part of the lower spring seat and the lower arm B as shown.

Fig 2: Identifying Spring, Lower Arm And Lower Spring Seat
Courtesy of AMERICAN HONDA MOTOR CO., INC.

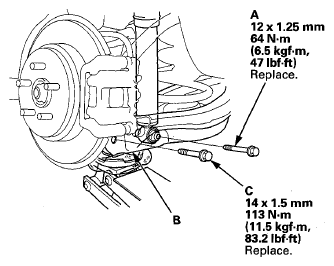

Raise the floor jack until the hole in the lower arm B aligns with the hole in the damper, then loosely install the new flange bolt (A) to the bottom of the damper.

Fig 3: Lower Arm And Flange Bolt With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Loosely install the new flange bolt (C) to the knuckle.

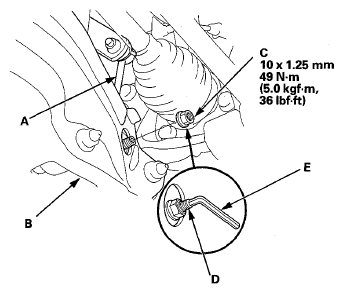

Connect the stabilizer link (A) to lower arm B, and install the flange nut (C), and tighten the flange nut to the specified torque, while holding the joint pin (D) with the hex wrench (E).

Fig 4: Holding Joint Pin Using Hex Wrench With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Raise the rear suspension with the floor jack to load the suspension with the vehicle's weight.
Tighten the flange bolts to the specified torque.
Install the muffler (A) to the muffler hanger (B).

Fig 5: Identifying Muffler And Muffler Hanger
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Clean the mating surfaces between the brake disc/drum and the inside of the wheel, then install the rear wheel.
Check the wheel alignment, and adjust it if necessary (see WHEEL ALIGNMENT ).
